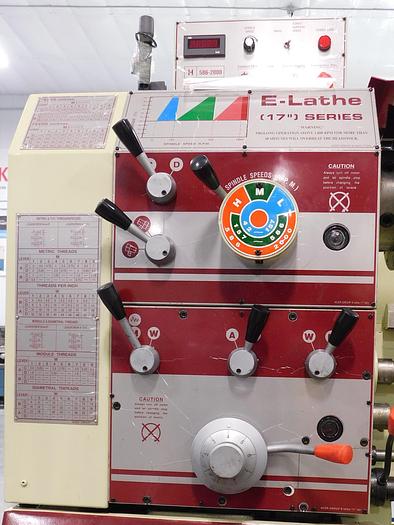

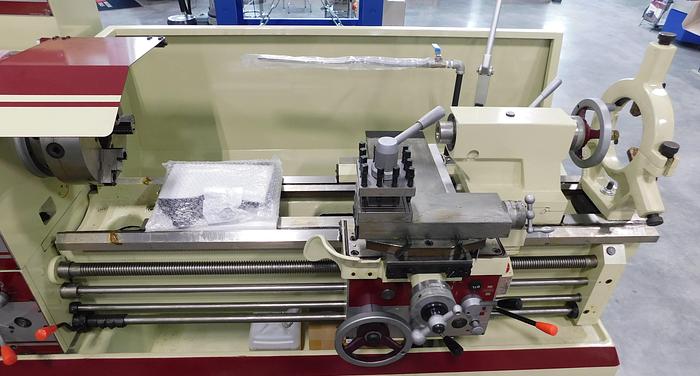

NEW ACER 1740E Toolroom Lathe Elathe 1740G
Sold
NEW ACER 1740E Toolroom Lathe Elathe 1740G
$22,300 (USD)
Location:Orange City, IA
Description
Machine Equipped With:
10” 3 jaw chuck
10” 4 jaw chuck
4 way tool post
Steady rest
Face plate
Newall 2 axis DRO w/constant surface speed
Specifications
| Manufacturer | NEW ACER 1740E Toolroom Lathe |
| Model | Elathe 1740G |
| Condition | New |
| Serial Number | N20080335 |
| Stock Number | 10508 |
| Swing over bed | 17" |
| Swing in gap | 26" |
| Swing over cross slide | 9 5/8" |
| Distance between centers | 40" |
| Spindle nose | D1-6 |
| Hole through spindle | 2 1/4" |
| Spindle speeds | 25-2000 variable |
| Cross slide travel | 8 5/8" |
| Compound slide travel | 7" |
| Maximum tool size | 1" x 1" |
| Threads, inch | 4-56 TPI (36) |
| Threads, mm | 0.5-7 mm (22) |
| Feeds, longitudinal | 0.002-.028 |
| Feeds, cross | 0.001-.014 |
| Main motor | 7.5 HP, 230V, 3 PH |
| Dimensions | 85" x 40" |
| Machine weight | 3,500 LBS |
