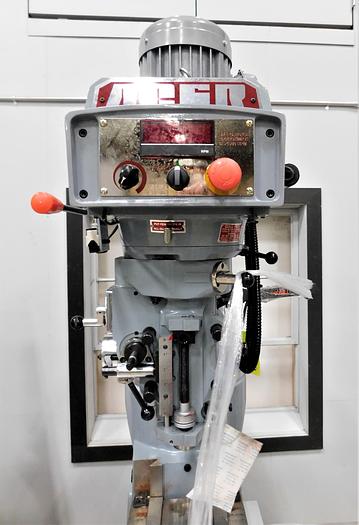

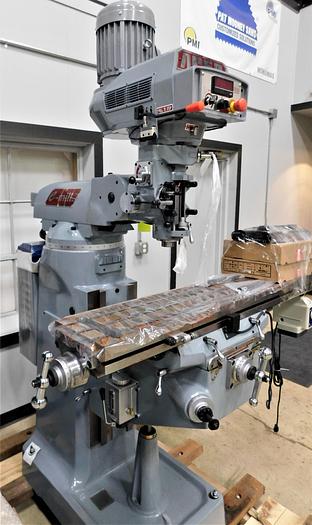

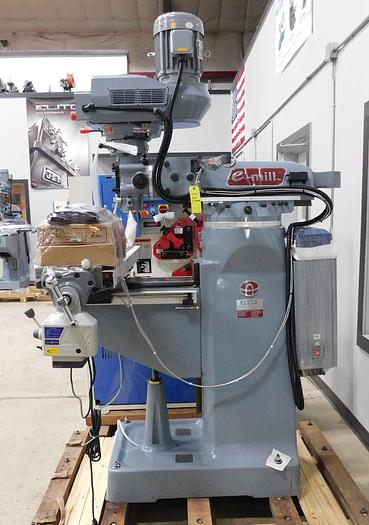

ACER 9" x 49" E-Mill Vertical Milling Machine 3VSII
Sold
ACER 9" x 49" E-Mill Vertical Milling Machine 3VSII
$12,900 (USD)
Location:Orange City, IA
Description
Equipped with:
Newall 2 axis DRO
Align power-feed on table
Specifications
| Manufacturer | ACER 9" x 49" E-Mill Vertical Milling Machine |
| Model | 3VSII |
| Condition | New |
| Serial Number | F21070203 |
| Stock Number | 10530 |
| Travel size | 9" x 49" |
| X axis travel | 34" |
| Y axis travel | 12" |
| Knee travel | 16" |
| Ram travel | 12" |
| T-slot size | 5/8" (3) |
| Main motor | 3 HP w/5 HP invertor |
| Spindle speeds | Electronic 60-4500 RPM |
| Spindle taper | R-8 |
| Quill feeds | 0.0015, 0.003, 0.006 |
| Quill diameter | 3 3/8" |
| Quill travel | 5" |
| Dimensions | 98" x 70" x 88" |
| Machine weight | 2,430 LBS |
