TRAK VMC10si Vertical Machining Center w/Sinumerik One CNC
TRAK VMC10si Vertical Machining Center w/Sinumerik One CNC
$92,552 (USD)
Location:Orange City, IA
orCall 712-737-8700
Description
Equipped with:
Probe Kit
Retention knobs
TRAK USB drive

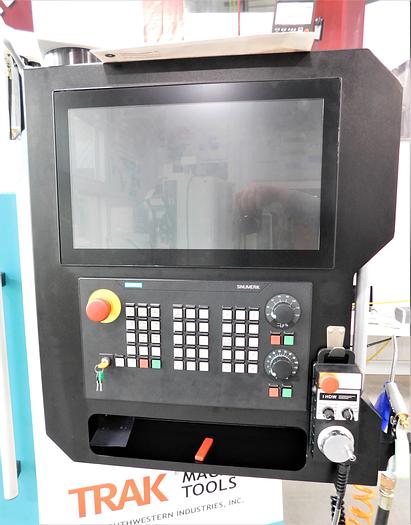

Sinumerik One control w/handwheel run option and One Dyanamics-Job Shop
Specifications
| Manufacturer | TRAK VMC10si Vertical Machining Center w/Sinumerik One CNC |
| Model | VMC10si |
| Condition | New |
| Serial Number | 221EZ270 |
| Stock Number | 10561 |
| Table size | 44.09" x 19.69" |
| X travel | 40" |
| Y travel | 20" |
| Z travel | 20" |
| T-slots | 5 |
| Maximum weight of workpiece | 1,760 LBS |
| Table height | 38" |
| Minimum spindle nose to table | 3.5" |
| Maximum spindle nose to table | 23.5" |
| Spindle taper | #40 |
| Spindle speed range | 10-12,000 |
| Spindle motor | 41.5 HP |
| Tool holder | CAT 40 |
| Spindle nose diameter | 3" |
| Spindle diameter | 60mm |
| Number of spindle bearings | 4 |
| Spindle cooler oil capacity | 1 gallon |
| Dimensions | 144" x 112" x 108" Tall |
| Weight | 9,900 LBS |
