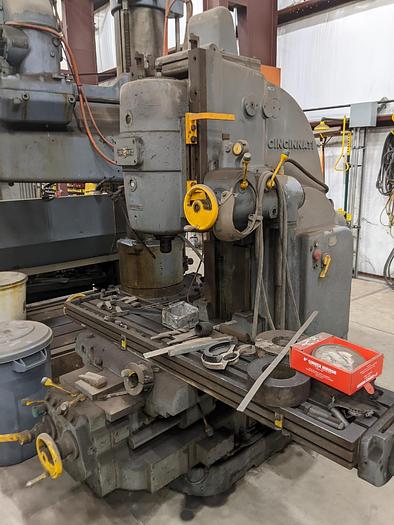

Cincinnati #315-16DT Vertical Mill
Cincinnati #315-16DT Vertical Mill
$9,500 (USD)
Location:South Dakota
orCall 712-737-8700
Description
Equipped with:
Rapid traverse
Lubrication system
Front operator controls
As is. Where is.
Specifications
| Manufacturer | Cincinnati #315-16DT Vertical Mill |
| Model | 315-16DT |
| Condition | Used |
| Serial Number | 4A3U5E-22 |
| Stock Number | 10576 |
| Table size | 76" x 15" |
| T-slots | 9/16" (3) |
| Longitudinal travel | 34" |
| Cross travel | 16" |
| Vertical knee travel | 20" |
| Distance spindle to table | 3/4"-16" |
| Throat distance | 18" |
| Spindle taper | #50 |
| Spindle speeds | 16-1600 RPM (24) |
| Feeds | 3/8"-90 IPM (32) (table & cross) |
| Feeds | 3/16"-45 IPM (vertical) |
| Motor | 15 HP main, 5.5 HP feed, 1/10 HP coolant |
| Dimensions | 92" x 99" x 108" |
| Weight | 12,500 LBS |
