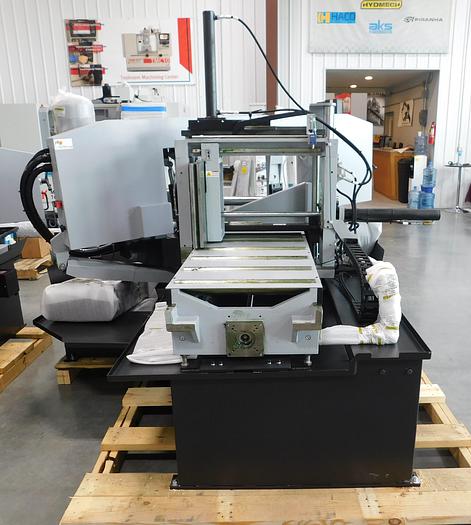

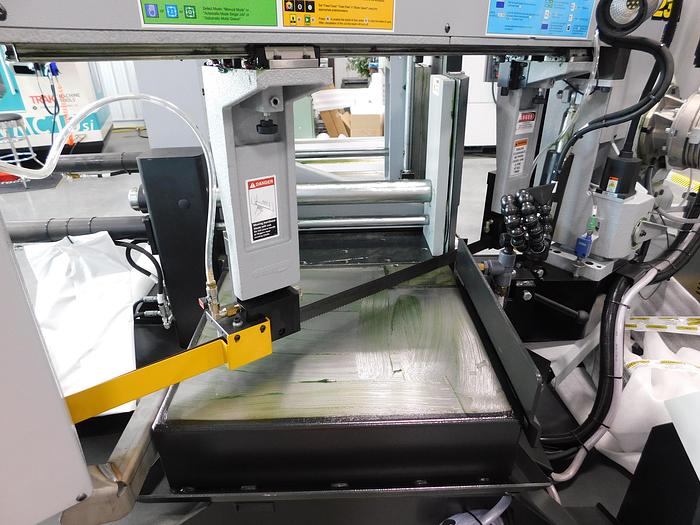

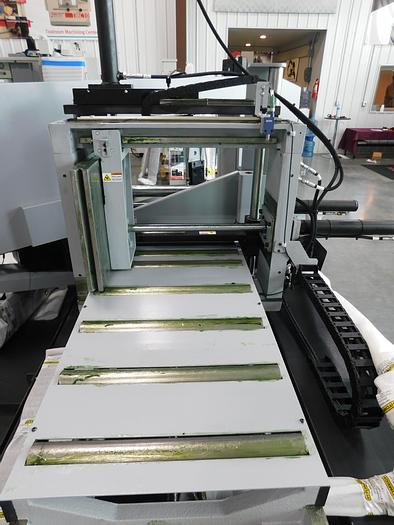

Hyd-Mech S-23A Automatic Pivot Style Bandsaw
Sold
Hyd-Mech S-23A Automatic Pivot Style Bandsaw
$49,250 (USD)
Location:Orange City, IA
Description
Equipped with:
Full capacity hydraulic overhead bundling-two vises, main and feed
Cast iron saw head
60° Miter 1 direction
Cast iron shuttle 0-28”
19.25” Out Feed Table, 45.25” Infeed Table
8.8 HP VFD, 480V, 3 PH
Hydraulic vises & positive down feed of head
On demand hydraulics
Full capacity full stroking hydraulic vises
Blade Chamber-pulls back material from cut part to extend blade life

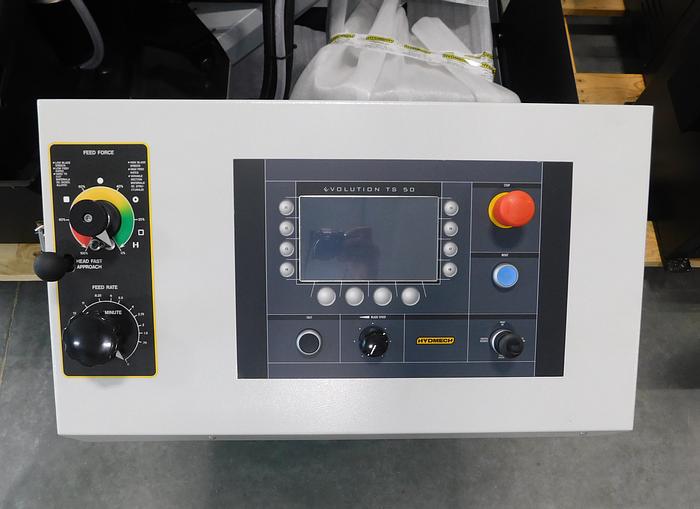

Auto PLC control up to 100 jobs
Easy to read Angle Scale
Out of stock switch
Blade Breakage Switch
Laser light
Work light
Variable vise pressure
Specifications
| Manufacturer | Hyd-Mech S-23A Automatic Pivot Style Bandsaw |
| Model | S-23A |
| Condition | New |
| Serial Number | 10000000000161 |
| Stock Number | 10606 |
| Capacity rectangle at 90 degrees | 16" x 20" |
| Capacity rectangle at 45 degrees | 16" x 14" |
| Capacity rectangle at 30 degrees | 16" x 8 1/2" |
| Capacity round at 90 degrees | 16" |
| Capacity round at 45 degrees | 14" |
| Capacity round at 30 degrees | 8 1/2" |
| Blade size | 1 1/4" x 16' 10" |
| Blade drive | 8.8 HP VFD |
| Blade speeds | 75-350 SFM |
| Coolant tank capacity | 12 gallons |
| Work load | 5,000 LBS |
| Machine weight | 4,200 LBS |
| Table height | 33" |
| Dimensions | 101" x 95" x 61" |
