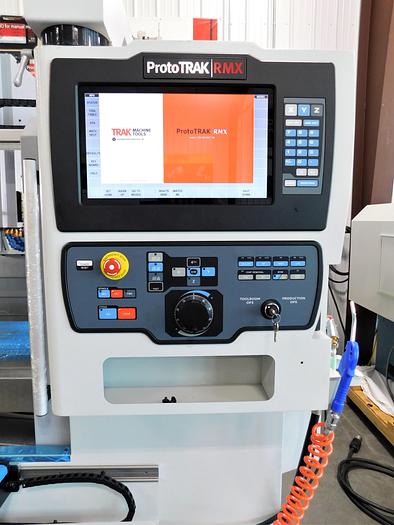

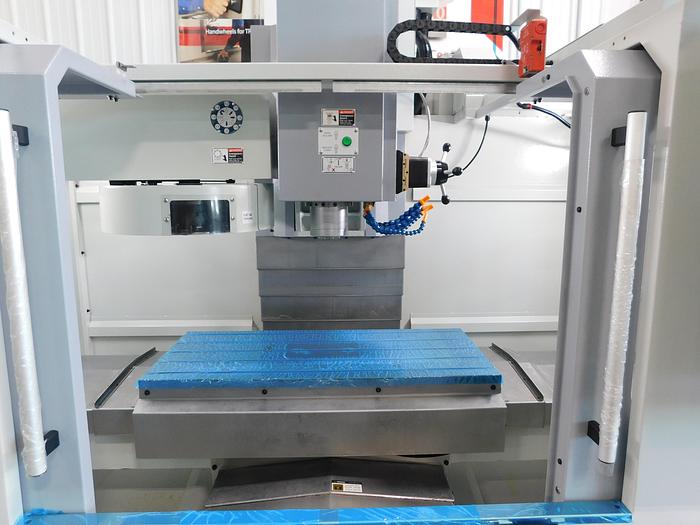

TRAK TMC10 with RMX Control TMC10
Sold
TRAK TMC10 with RMX Control TMC10
$82,347 (USD)
Location:Orange City, IA
Description
Equipped with:
Auxiliary function
Electronic handwheel
Remote stop/go switch
Retention knobs-Cat 40 tooling (set of 16)
Converter-parasolid and DXF files
Specifications
| Manufacturer | TRAK TMC10 with RMX Control |
| Model | TMC10 |
| Condition | New |
| Serial Number | 222EP667 |
| Stock Number | 10610 |
| Table size | 44.09" x 19.69" |
| T-slots (number x width x spacing) | 5 @ .709" x 3.937" |
| Travels (X,Y,Z) | 40.75" x 20" x 20" |
| Spindle taper | 40 Taper |
| Spindle speed range | 50-8,000 RPM |
| Spindle nose diameter | 3" diameter |
| Tool clamping force | 1,500 LBS |
| Tool holder type | CT 40 or BT40 |
| Automatic tool changer capacity | 16 tools |
| Maximum tool weight | 15 LBS |
| Maximum tool diameter | 3.14" |
| Carousel speed | 0.8 second station to station |
| Tool selection system | Bi-directional/shortest path |
| Spindle motor power (peak HP) | 15 HP |
| Spindle motor power (continuous) | 10 HP |
| Power requirements | 208V, 3 PH, 68 Amps |
| Power requirements w/optional transformer | 480V, 3 PH, 30 Amps |
| Maximum weight of workpiece | 1,000 LBS |
| Height of table from bottom of bed | 38" |
| Minimum spindle nose to table distance | 3.5" |
| Maximum spindle nose to table distance | 23.5" |
| Distance of tool carousel to table top | 17.5" |
| Throat depth | 18.25" |
| Minimum machine height | 90" |
| Maximum machine height | 106.5" |
| Overall width of machine | 174.5" |
| Overall length of machine | 152" |
| Footprint of machine | 111" x 135" |
| Machine weight/NET shipping | 9,900 LBS/10,250 LBS |
| Rapid traverse rate | 400/1,000 IPM |
| Coolant tank capacity | 56 gallons |
| Coolant pump & wash power | 750 watts |
| Air pressure | 90 PSI-2.5 CFM or 18 at 90 PSI SCFM |
| Air quality | Air dried/water separator |
| Lubrication pump capacity | 2 liters |
