Hyd-Mech H-320A Automatic Dual Post Horizontal Bandsaw
Hyd-Mech H-320A Automatic Dual Post Horizontal Bandsaw
$45,150 (USD)
Location:Orange City, IA
Description
Equipped with:
Full capacity hydraulic overhead bundling – two vises
Heavy duty cast iron saw head
Split front vise
Fabricated shuttle features automatic multi-indexing up to 23” in a single stroke.
Steel guide arms mounted on linear rails.
6 HP VFD
Reversible chip auger
Full capacity, full stroking hydraulic vises
Hydraulic positive down feed
Blade chamber separates material from cut part
Cast iron band wheels

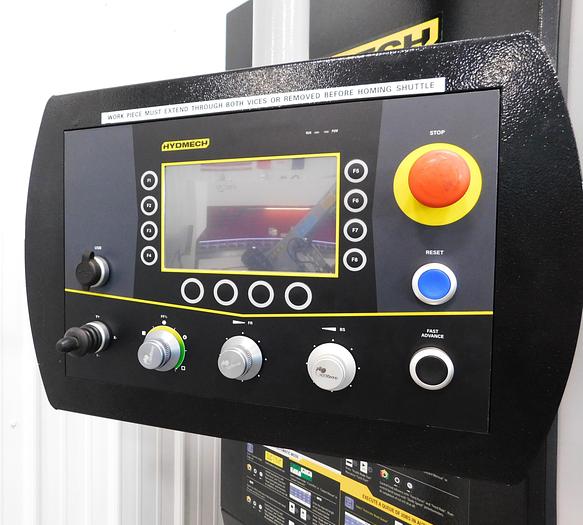

Automatic PLC, touch screen control programmable up to 100 jobs w/20 in queue
Replaceable blade brush
Easy access electrical panel and hydraulics
Blade breakage switch
Blade deviation monitor
Out of stock switch
Mechanical band tensioning w/digital readout
Replaceable carbide guide inserts
Safety door interlocks RFID technology
Flood coolant w/wash down hose
Laser light
LED work light
Variable vise pressure
Specifications
| Manufacturer | Hyd-Mech H-320A Automatic Dual Post Horizontal Bandsaw |
| Model | H-230A |
| Condition | New |
| Stock Number | 10667 |
| Capacity rectangle at 90 degrees | 12 1/2" x 12 1/2" |
| Capacity round at 90 degrees | 12 1/2" |
| Capacity square at 90 degrees | 12 1/2" |
| Blade size | 1 1/4" x 14' 9" |
| Blade drive | 6 HP |
| Voltage | 480V |
| Blade speeds | 49-380 SFM |
| Automatic multi-indexing | 0-23" |
| Remnant length | 1.8" w/o bundling/10" w/bundling |
| Coolant tank capacity | 53 gallons |
| Machine weight | 4,400 LBS |
| Table height | 34" |
| Dimensions | 106" x 71" x 80" |
