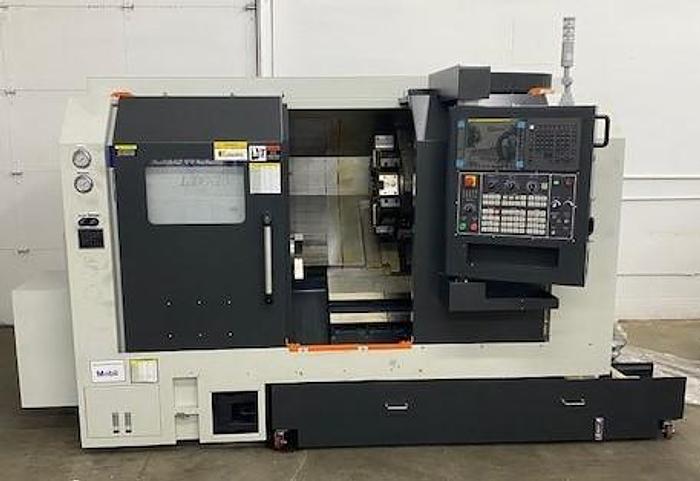

LEADWELL 2 Axis CNC Turning Center w/Fanuc Oi-TF Control LTC-20i-TF

No longer available

LEADWELL 2 Axis CNC Turning Center w/Fanuc Oi-TF Control LTC-20i-TF

Location:Albert Lea, MN

Description

Equipped with:

Fanuc CNC Control Model: Oi-TF

Heavy duty box ways on X & Z axes w/auto lubrication

Programmable tailstock (shot pin & drag) hydraulic quill

12 station Servo driven turret w/1” square tool shank

10” 3 jaw hydraulic chuck w/2.99” bar capacity

34/22 HP spindle drive w/3,500 max RPM

A2-8 spindle nose w/3.5” spindle I.D.

787 IPM rapid traverse

Double pre-tensioned ballscrews

Fully enclosed splash guard

Flood coolant w/large separate coolant tank

Chip conveyor

Alarm & work light

Program & data protection – key switch

Manual pulse generator

USB/PCMCIA/RS-232 & embedded ethernet connections

Specifications

ManufacturerLEADWELL 2 Axis CNC Turning Center w/Fanuc Oi-TF Control
ModelLTC-20i-TF
ConditionNew
Serial NumberL2TBA0212
Stock Number10701
Maximum swing over bed22.4"
Maximum swing over cross slide14.7"
Maximum turning diameter15.7"
Maximum turning length23.6"
Maximum spindle speed3,500 RPM
Spindle noseA2-8
Bar capacity2.99"
Maximum spindle torque382.8 ft/lbs
Type of tool turretBlock/Servo driven
Number of turret stations12
Shank height for square tool1"
Shank diameter for boring bar1.5"
Turret indexing time (adjacent tool) seconds0.72 seconds
Turret indexing time (180 degrees) seconds1.32 seconds
X axis rapid traverse787 IPM
Z axis rapid traverse787 IPM
Jog feed rate49.6 IPM
Angle of slant bed45 degrees
Diameter of X axis ballscrew32 mm
Diameter of Z axis ballscrew40 mm
Tailstock movement26.8"
Hydraulic quill stroke3"
Quill diameter3"
Quill taperMT #4
Hydraulic motor2 HP
Hydraulic tank capacity40 liters
Coolant pump1.5 HP
Coolant tank capacity150 liters
Power supply40 KVA
Dimensions120" x 75.1" x 73.3"
Machine weight10,362 LBS
