Hyd-Mech S-23A Automatic Pivot Style Bandsaw S-23A
Sold
Hyd-Mech S-23A Automatic Pivot Style Bandsaw S-23A
$52,250 (USD)
Location:Albert Lea, MN
Description
Equipped with:
Easy swing, heavy duty, cast iron saw head that can swing up to 60° in one direction
Cast iron shuttle features automatic multi-indexing up to 28.5” in a single stroke
19 ¼” out feed table and 45 ¼” infeed table
Full capacity, full stroking hydraulic vises
Cast iron band wheels

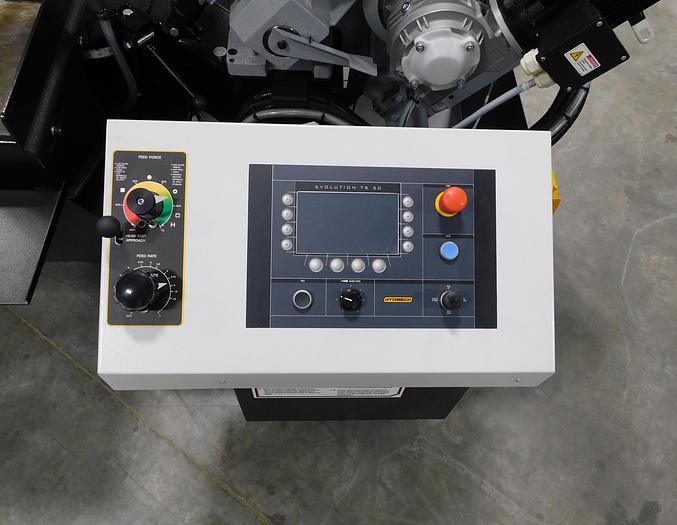

Automatic PLC touch screen control programmable up to 100 jobs w/20 in queue
Replaceable blade brush
Easy to read angle scale w/angle locking mechanism
Cast iron blade guide arms
Out of stock switch
Blade breakage switch
Mechanical band tensioning w/digital readout
Hydraulic positive down fee of sawing head
Pre-set, replaceable carbide guide inserts
Safety door interlocks
Flood coolant w/wash down hose
Laser light
Work light
Variable vise pressure
Specifications
| Manufacturer | Hyd-Mech S-23A Automatic Pivot Style Bandsaw |
| Model | S-23A |
| Condition | New |
| Serial Number | 10000000000776 |
| Stock Number | 10714 |
| Capacity rectange at 90 degrees | 16" x 20" |
| Capacity round at 90 degrees | 16" |
| Capacity rectangle at 45 degrees | 16" x 14" |
| Capacity round at 45 degrees | 14" |
| Capacity rectangle at 30 degrees | 16" x 8-1/2" |
| Capacity round at 30 degrees | 8-1/2" |
| Blade size | 1-1/4" x 16' 10" |
| Blade drive | 8.8 HP VFD |
| Blade speeds | 75-350 SFM |
| Coolant tank capacity | 12 gallons |
| Work load | 5,000 LBS |
| Machine weight | 4,200 LBS |
| Table height | 33" |
| Dimensions | 101" x 95" x 61" |
