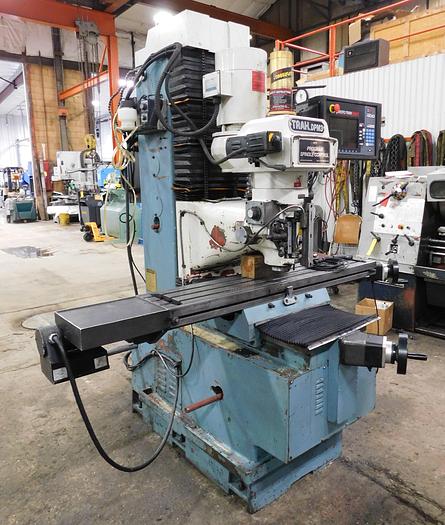

1999 TRAK DPM3 CNC Bed Mill DPM3
Sold
1999 TRAK DPM3 CNC Bed Mill DPM3
$15,750 (USD)
Location:Orange City, IA
Description
Equipped with:
Automatic lubrication
Glass scale feedback

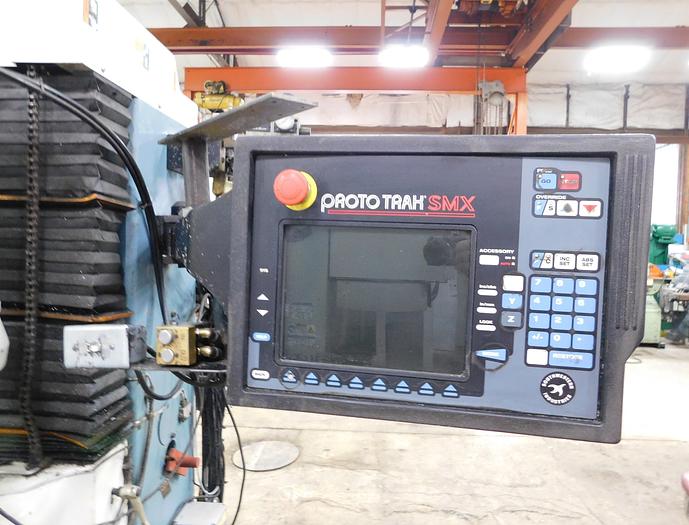

ProtoTRAK AGE-3 control
Specifications
| Manufacturer | TRAK DPM3 CNC Bed Mill |
| Model | DPM3 |
| Year | 1999 |
| Condition | Used |
| Serial Number | 98-4990 |
| Stock Number | 10758 |
| Table size | 10" x 50" |
| Table travels | 17" x 31" |
| Z axis travel | 20" |
| Quill travel | 5" |
| Quill diameter | 3-15/16" |
| Quill taper | #40 |
| Spindle speeds | 70-4200 |
| Spindle center to column | 17.3" |
| Quill feeds | 0.002, 0.004, 0.006 |
| Main motor | 3 HP |
| Maximum work on table | 1,310 LBS |
| Maximum drilling capacity | 1.5" |
| Tapping capacity | 1.25" |
| Boring capacity | 4.75" |
| Dimensions | 70" x 72" x 89" |
| Machine weight | 4,500 LBS |
