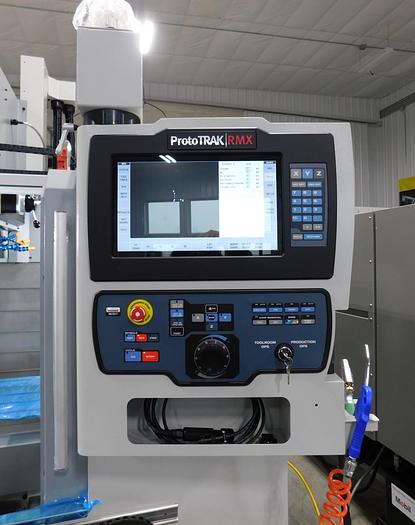

TRAK Toolroom Machining Center w/ProtoTRAK RMX Control TMC-7
Sold
TRAK Toolroom Machining Center w/ProtoTRAK RMX Control TMC-7
$75,753 (USD)
Location:Orange City, IA
Description
Equipped with:
Tooling cart preset tool, plate
Electronic handwheel option
Remote stop/go switch
Coolant through spindle
Specifications
| Manufacturer | TRAK Toolroom Machining Center w/ProtoTRAK RMX Control |
| Model | TMC-7 |
| Condition | New |
| Serial Number | 231FF620 |
| Stock Number | 10767 |

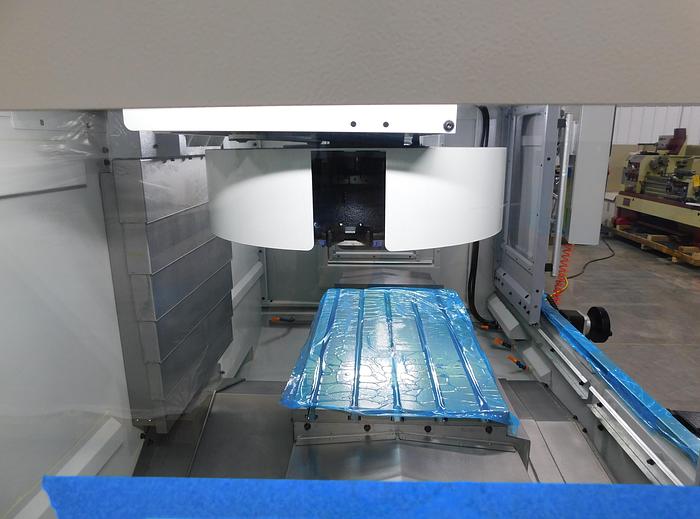

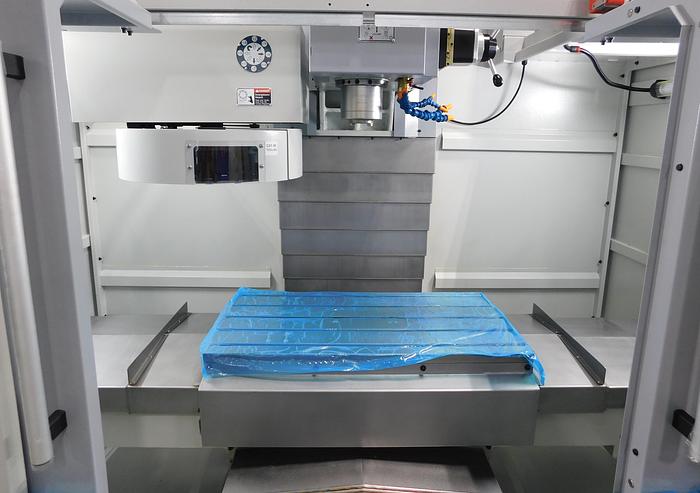

| Table size | 35.43" x 19.69" |
| T-slots | 3" x .709" x 3.937" |
| Table travels (X,Y,Z) | 30" x 20" x 20" |
| Spindle taper | 40 Taper |
| Spindle speed range | 50-8,000 RPM |
| Spindle nose diameter | 3" |
| Tool clamping force | 1,500 LBS |
| Tool holder type | CT40 or BT40 |
| Automatic tool changer capacity | 16 tools |
| Maximum tool weight | 15 LBS |
| Maximum tool diameter | 3.14" |
| Carousel speed | 0.8 second station to station |
| Tool selection system | Bi-directional/shortest path |
| Spindle motor power (peak HP) | 15 HP |
| Spindle motor power (continuous) | 10 HP |
| Power requirements | 208V, 3 PH, 83 Amps |
| Power requirements w/optional transformer | 460V, 3 PH, 41.5 Amps |
| Maximum weight of workpiece | 1,000 LBS |
| Height of table from bottom of bed | 38" |
| Minimum spindle nose to table distance | 3.5" |
| Maximum spindle nose to table distance | 23.5" |
| Distance of tool carousel to table top | 17.5" |
| Throat depth | 18.25" |
| Minimum machine height | 90" |
| Maximum machine height | 106.5" |
| Footprint | 91.5" x 126" |
| Machine weight | 8,360 LBS |
| Rapid traverse rate | 400/1,000 IPM |
| Coolant tank capacity | 56 gallons |
| Coolant pump & wash power | 750 watts |
| Air pressure CFM or SCFM | 90 psi-2.5 CFM or 18 SCFM |
| Air quality | Air dried/water separator |
| Tapping maximum capacity | 2 liters |
