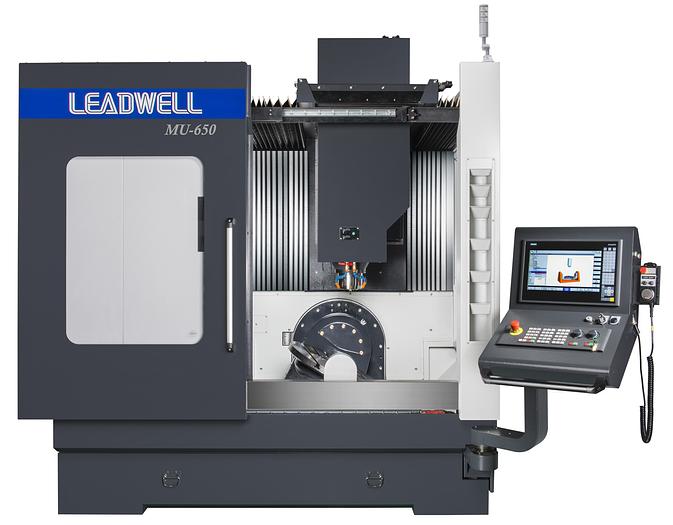

LEADWELL 5 Axis Vertical Machining Center MU-650

LEADWELL 5 Axis Vertical Machining Center MU-650

Contact us for price

Location:Illinois

orCall 712-737-8700

Description

Equipped with:

Siemens 840D Control

40 tools ATC

BT40 (BBT/JIS6339 pull stud)

CTS 1,000 PSI Prep w/Rotary Union

Spindle Coolant Jet

Programmable Air Blow

Chip Conveyor w/Bucket

Air Gun

Coolant Gun

Specifications

ManufacturerLEADWELL 5 Axis Vertical Machining Center
ModelMU-650
ConditionNew
Serial NumberL2TBA0397
X axis travel620 mm/24.41"
Y axis travel520 mm/20.47"
Z axis travel640 mm/25.2"
Tilting angle range+110 to -50 degrees
C axis rotation angle360 degrees
Table dimension0-650 mm/0-25.59"
Maximum table load300 kg/661 LBS
Maximum spindle torque70 Nm
Rapid traverse X/Y/Z36/36/36 m/min
Direct drive spindle12,000 RPM
Main motor24 HP
