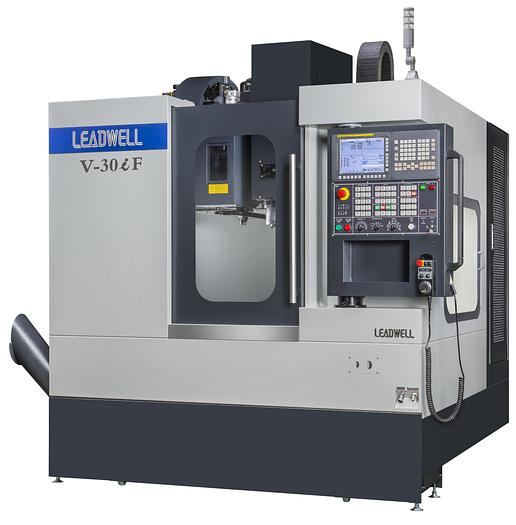

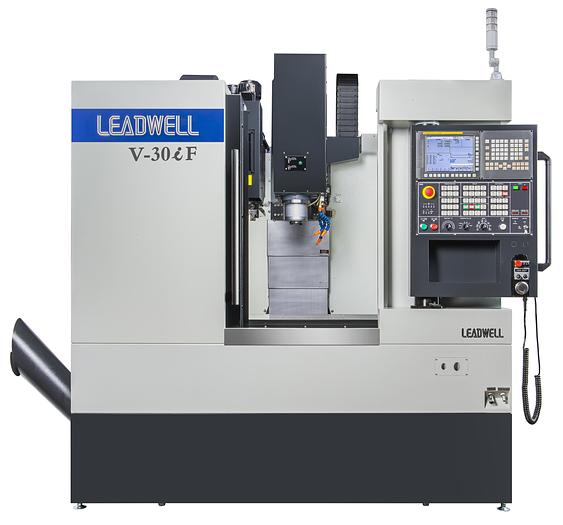

LEADWELL 3 Axis Vertical Machining Center V-30iF
LEADWELL 3 Axis Vertical Machining Center V-30iF
Contact us for price
Location:FOB L.A.
orCall 712-737-8700
Description
Equipped with:
Fanuc 0i-MF control
Full enclosed splash guard
Heat exchanger
Spindle oil chiller
Spindle air purge
Spindle coolant ring
Top cover
Air gun
Coolant gun
Pallet packing
TS-27 tool setter
4 axis prep
Chip conveyor (chain type) w/bucket
Oil skimmer
Specifications
| Manufacturer | LEADWELL 3 Axis Vertical Machining Center |
| Model | V-30iF |
| Condition | New |
| Serial Number | L2TBA0415 |
| X axis travel | 800 mm/31.5" |
| Y axis travel | 460 mm/18.11" |
| Z axis travel | 510 mm/20.08" |
| Table size | 860 mm x 450mm/33.86" x 17.72" |
| Permissible mass of workpiece | 450 kg/992 LBS |
| Spindle speeds | 10,000 RPM |
| Maximum spindle torque | 109.8Nm |
| Feed rate | 48/48/36 m/min |
| Tool storage capacity | 24 |
| Maximum tool length | 250 mm/9.84" |
| Spindle motor | 11/15 KW (cont/S3-25%) |
| X/Y/Z axis feed motor | 4/4/4 KW |
| Power supply | 30 KVA |
| Dimensions | 155.51" x 90.55" x 100.4" |
| Machine weight | 3,920 kg/9,000 LBS |
