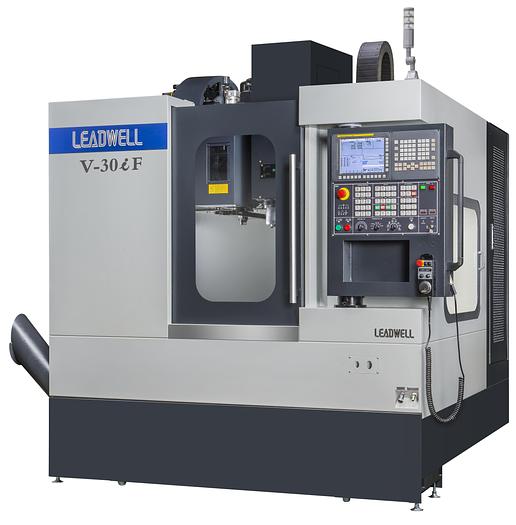

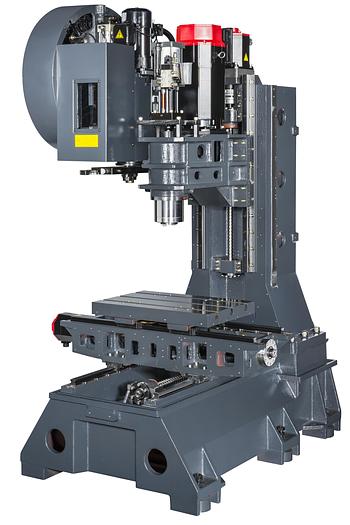

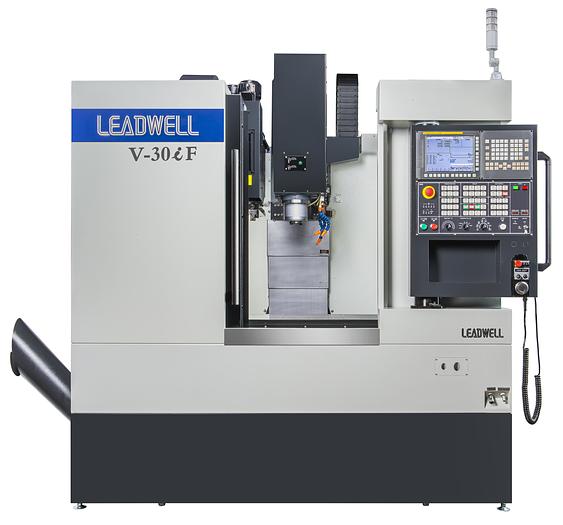

LEADWELL 3 Axis Vertical Machining Center V-30iF
LEADWELL 3 Axis Vertical Machining Center V-30iF
Contact us for price
Location:Hampshire, IL
orCall 712-737-8700
Description
Equipped with:
Fanuc 0i-MF PLUS control
Full enclosed splash guard
Heat exchanger
Spindle oil chiller
Spindle air purge
Spindle coolant ring
Top cover
Air gun
Coolant gun
Pallet packing
Chip conveyor (auger type)
Beauty sheet metal for rear side
0i-MF/10.4"/a8-8K spindle motor (non 3 in 1)
CTS preparation CAT/CAT (ceramic bearing spindle)
Separate tool arm
3 bar pump for spindle
Specifications
| Manufacturer | LEADWELL 3 Axis Vertical Machining Center |
| Model | V-30iF |
| Condition | New |
| Serial Number | L2TBB0066 |
| X axis travel | 800 mm/31.5" |
| Y axis travel | 460 mm/18.11" |
| Z axis travel | 510 mm/20.08" |
| Table size | 860 mm x 450mm/33.86" x 17.72" |
| Permissible mass of workpiece | 450 kg/992 LBS |
| Spindle speeds | 10,000 RPM |
| Maximum spindle torque | 109.8 Nm |
| Feed rate | 48/48/36 m/min |
| Tool storage capacity | 24 |
| Maximum tool length | 250 mm/9.84" |
| Spindle motor | 11/15 KW (cont/S3-25%) |
| X/Y/Z axis feed motor | 4/4/4 KW |
| Power supply | 30 KVA |
| Dimensions | 155.51" x 90.55" x 100.4" |
| Machine weight | 3,920 kg/9,000 LBS |
