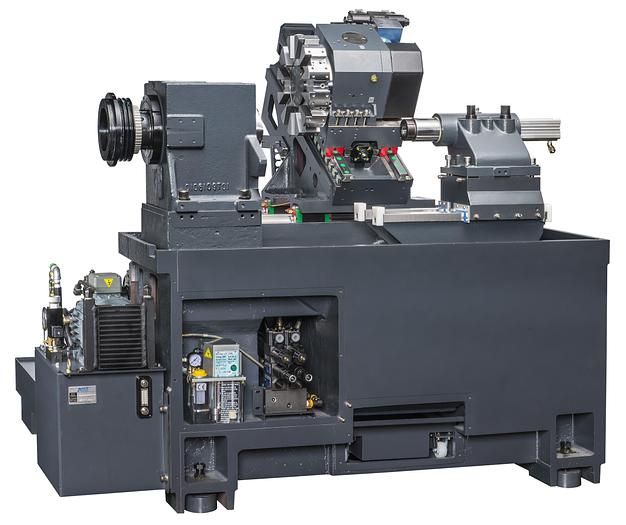

LEADWELL 2 Axis Horizontal Lathe (Linear Way) T-6i
LEADWELL 2 Axis Horizontal Lathe (Linear Way) T-6i
Contact us for price
Location:FOB L.A.
orCall 712-737-8700
Description
Equipped with:
0i-TF/T3 control
Heat exchanger
Full enclosed splash guard
3 jaw open center chuck
Air gun
Coolant gun
Chip conveyor w/bucket
Pallet packing
Specifications
| Manufacturer | LEADWELL 2 Axis Horizontal Lathe (Linear Way) |
| Model | T-6i |
| Condition | New |
| Serial Number | L2TAI0181 |
| Maximum swing | 480mm/18.90" |
| Swing over cross slide | 270mm/10.63" |
| Maximum turning diameter | 300mm/11.81" |
| Maximum turning length | 330mm/13" |
| Bar capacity | 45mm/1.77" |
| Spindle bore | 56mm/2.2" |
| Maximum workpiece weight w/tailstock | 900 KG/1,984 LBS |
| X axis travel | 150mm + 25mm/5.91" + .98" |
| Z axis travel | 330mm/13" |
| Spindle speed | 5,000 RPM |
| Chuck size | 8" |
| Spindle nose | A2-5 |
| Number of tool station | 12 tools |
| Shank height for square tool | 20mm/0.79" |
| Shank diameter for boring bar | 32mm/1.26" |
| X axis rapid traverse | 30m/min |
| Z axis rapid traverse | 30m/min |
| X axis motor | 1.8 KW |
| Z axis motor | 1.8 KW |
| Tailstock movement type | Manual |
| Tailstock movement | 250mm/9.8" |
| Quill movement type | Hydraulic |
| Quill inside taper | MT-4 |
| Power supply | 30 KVA |
| Dimensions | 102.36" x 90.55" x 86.61" |
| Machine weight | 3,530 KG/7,800 LBS |
