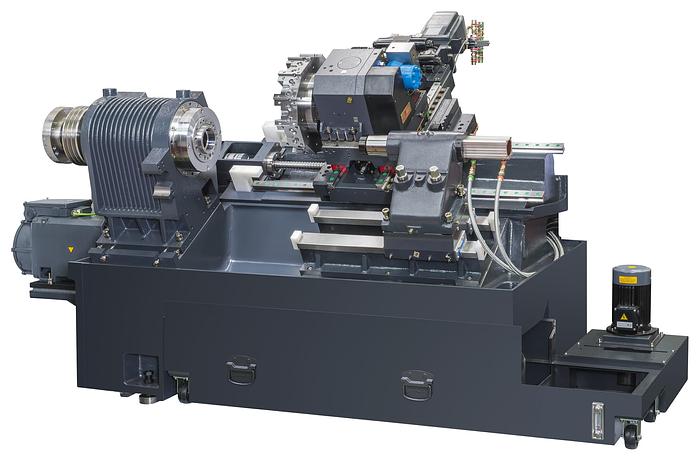

LEADWELL 2 Axis Horizontal Lathe (Linear Way) T-7A
LEADWELL 2 Axis Horizontal Lathe (Linear Way) T-7A
Contact us for price
Location:Hampshire, IL
orCall 712-737-8700
Description
Equipped with:
0i-TF/T3 control
Heat exchanger
Full enclosed splash guard
3 jaw open center chuck
Air gun
Coolant gun
Chip conveyor w/bucket
Pallet packing
Specifications
| Manufacturer | LEADWELL 2 Axis Horizontal Lathe (Linear Way) |
| Model | T-7A |
| Condition | New |
| Serial Number | L2TBA0670 |
| Maximum swing | 500mm/19.69" |
| Swing over cross slide | 290mm/11.42" |
| Maximum turning diameter | 380mm/11.81" |
| Maximum turning length | 440mm/17.32" |
| Bar capacity | 65mm/2.56" |
| Maximum workpiece weight without tailstock | 24 KG/52.91 LBS |
| X axis travel | 190mm + 20mm/7.48" + .79" |
| Z axis travel | 450mm/17.72" |
| Spindle speed | 4,000 RPM |
| Chuck size | 8" |
| Spindle nose | A2-6 |
| Number of tool station | 12 tools (SERVO) |
| Shank height for square tool | 25mm/0.98" |
| Shank diameter for boring bar | 40mm/1.58" |
| X axis rapid traverse | 30m/min |
| Z axis rapid traverse | 30m/min |
| X axis motor | 1.8 KW |
| Z axis motor | 1.8 KW |
| Power supply | 30 KVA |
| Machine Dimensions | 137.80" x 89.86" x 83.47" |
| Machine weight | 4,570 KG/10,100 LBS |
| Assy Dimensions | 43.31" x 30.32" x 43.70" |
| Assy Weight | 80 KG/180 LBS |
