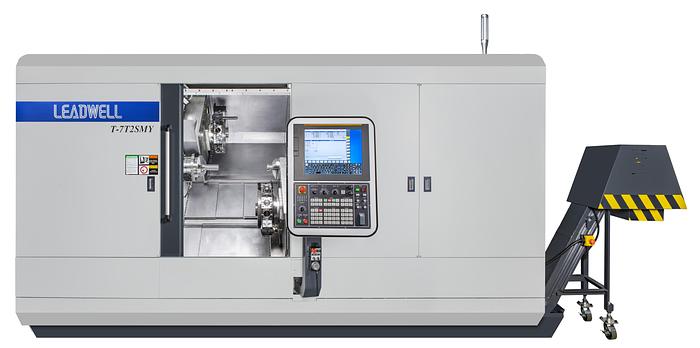

LEADWELL Horizontal Turning Center T-7T2SMY

LEADWELL Horizontal Turning Center T-7T2SMY

Contact us for price

Location:Hampshire, IL

orCall 712-737-8700

Description

Equipped with:

31i control

Air conditioned

Tool setter

Sub spindle air outer blow

Heat exchanger

Full enclosed splash guard

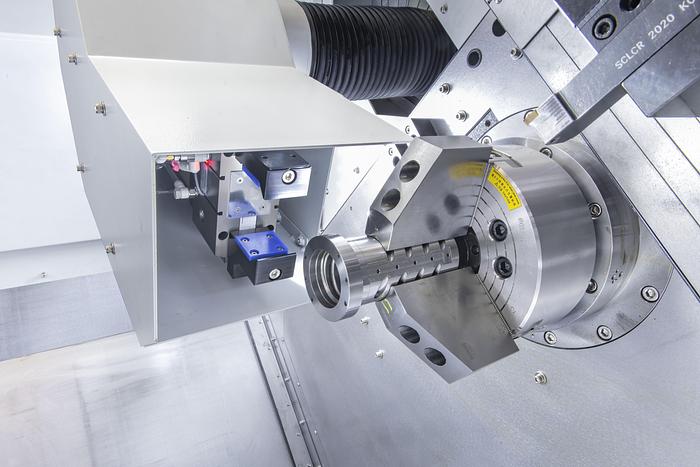

3 jaw open center chuck

Air gun

Coolant gun

Chip conveyor w/bucket

Pallet packing

Specifications

ManufacturerLEADWELL Horizontal Turning Center
ModelT-7T2SMY
ConditionNew
Serial NumberL2TBA0227
Maximum swing790mm/31.10"
Swing over cross slide220mm/8.66"
Maximum turning diameter470mm/18.50"
Maximum turning length770mm/30.32"
Bar capacity52mm/2.05"
Maximum workpiece weight24 KG/52.91 LBS
X1 axis travel235mm + 15mm/9.25" + .59"
X2 axis travel220mm + 10mm/8.66" + .39"
Y axis travel+/- 50mm/+/- 1.97"
Z1 axis travel770mm/30.32"
Z2 axis travel790mm/31.10"
Sub spindle travel770mm/30.32"
Spindle & sub spindle speed4500 RPM
Spindle noseA2-6
Number of tools16 (BMT-55)
Dimensions236.22" x 90.55" x 100.39"
Machine weight13,510 KG/30,000 LBS
