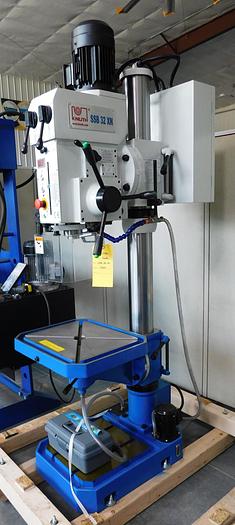

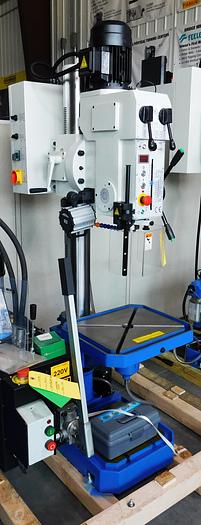

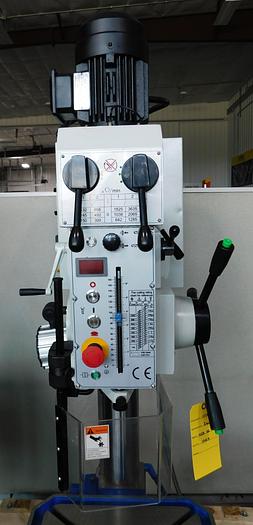

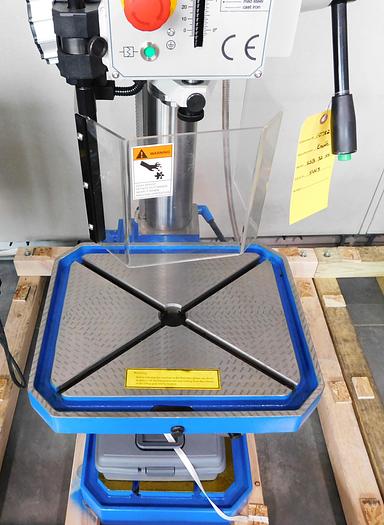

Knuth 26" Single Spindle Column Drill SSB 32 XN

Knuth 26" Single Spindle Column Drill SSB 32 XN

$11,300 (USD)

Location:Orange City, IA

orCall 712-737-8700

Specifications

ManufacturerKnuth 26" Single Spindle Column Drill
ModelSSB 32 XN
ConditionNew
Serial Number5443
Stock Number10782
Drilling capacity1.25"
Tapping capacityM20
Table size20" x 17"
Table vertical adjustment19"
Quill stroke6"
Table swivel range+/- 45 degrees
Spindle to table distance25"
Throat depth13"
Column diameter5"
Head rotation+/- 45 degrees
Table load capacity200 LBS
Spindle taperMT4
Spindle speeds125-3030 RPM
Feed ranges0.004, 0.008, 0.012
Main motor1.6 HP
Dimensions34" x 20" x 78"
Machine weight1,188 LBS
