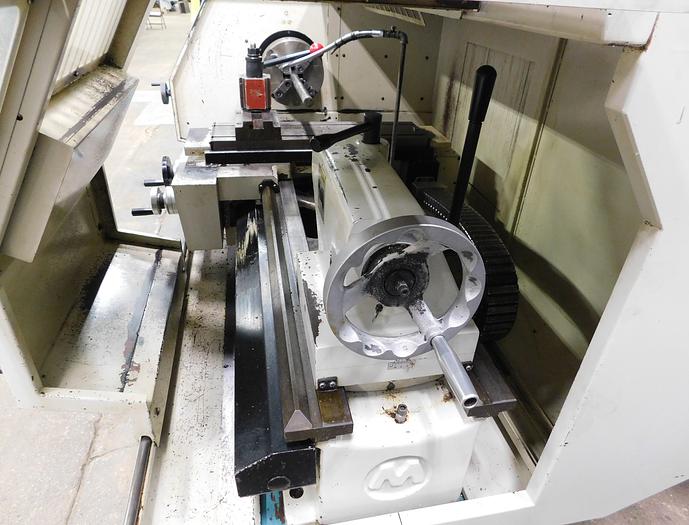

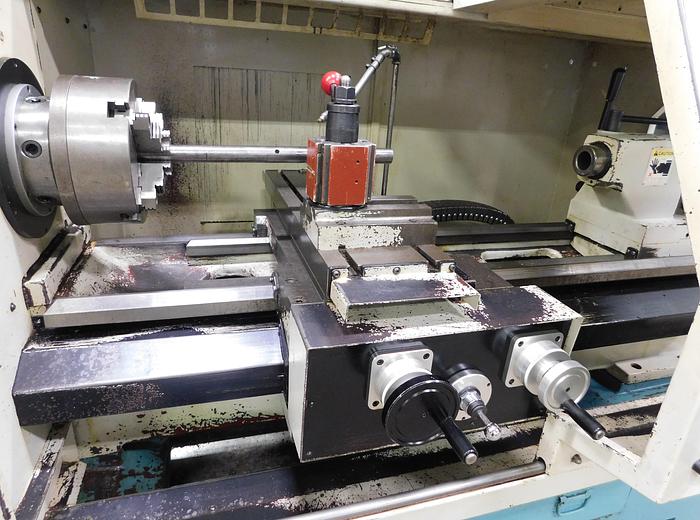

TRAK 18" x 40" 2 Axis Combination Manual/CNC Lathe TRL 1840 CSS
TRAK 18" x 40" 2 Axis Combination Manual/CNC Lathe TRL 1840 CSS
$18,500 (USD)
Location:Orange City, IA
orCall 712-737-8700
Description
Equipped with:

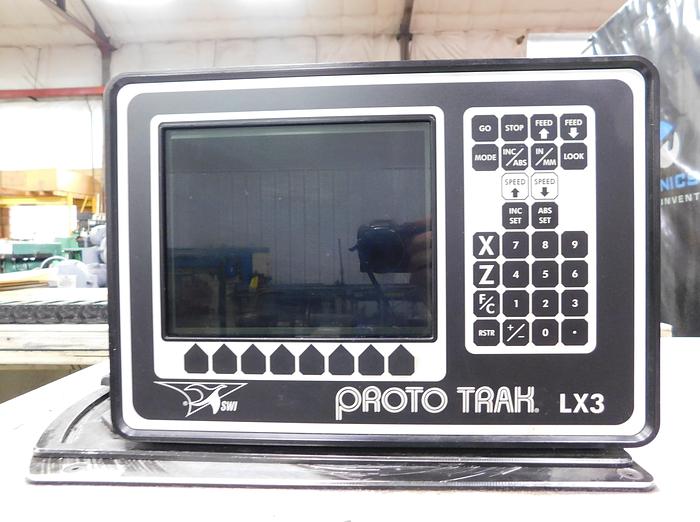

TRAK LX3 control
4 jaw chuck, self-centering with reversable jaws
Coolant
Dorian quick change tool post
Automatic lubrication system
Manuals
Specifications
| Manufacturer | TRAK 18" x 40" 2 Axis Combination Manual/CNC Lathe |
| Model | TRL 1840 CSS |
| Condition | Used |
| Serial Number | 99-8147 |
| Stock Number | 10808 |
| Swing over bed | 18.5" |
| Swing over cross slide | 9" |
| Distance between centers | 40" |
| Spindle speeds | 80-2500 RPM |
| Spindle nose | D1-6 |
| Spindle bore | 2.36" |
| Z axis longitudinal travel | 36" |
| X axis cross travel | 13" |
| Main motor | 10 HP |
| Dimensions | 9' x 53" |
| Machine weight | 4,000 LBS |
