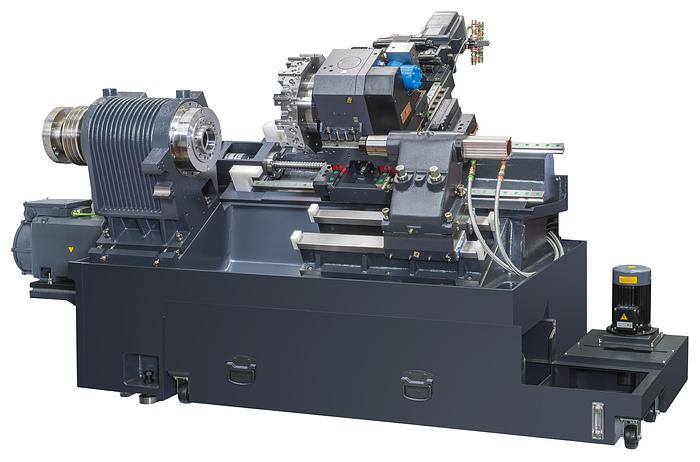

LEADWELL 2 Axis Horizontal Lathe (Linear Way) T7A-208

LEADWELL 2 Axis Horizontal Lathe (Linear Way) T7A-208

Contact us for price

Location:Hampshire, IL

orCall 712-737-8700

Description

Equipped with:

Heat exchanger

Full enclosed splash guard

3 jaw open center chuck

Air gun

Coolant gun

Chip conveyor & bucket

Pallet packing

8" chuck + cylinder (auto strong)

Specifications

ManufacturerLEADWELL 2 Axis Horizontal Lathe (Linear Way)
ModelT7A-208
ConditionNew
Serial NumberL2TBA0661
Control typeFanuc Oi-TF/T3
Maximum swing20"
Swing over cross slide11.42"
Maximum turning diameter14.96"
Maximum turning length17.32"
Bar capacity2.56"
Maximum workpiece weight without tailstock55 LBS
X/Z axis travel7.4 + .75"/17.72"
Spindle speed4,000 RPM
Chuck size8"
Spindle noseA2-6
Number of tool station12 tools (SERVO)
Shank height for square tool1"
Shank diameter for boring bar1.5"
X/Z axis rapid traverse1,181 IPM
X/Z axis motor2.4 HP
Power supply30 KVA
Machine Dimensions147" x 67" x 71"
Machine weight10,200 LBS
