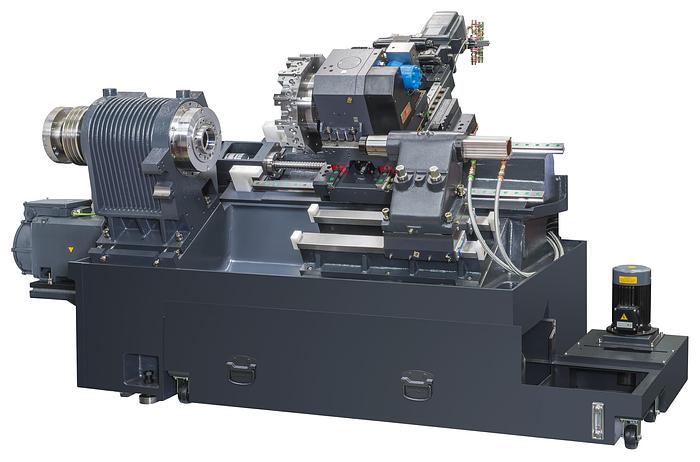

LEADWELL 2 Axis Horizontal Lathe (Linear Way) T7A-208

LEADWELL 2 Axis Horizontal Lathe (Linear Way) T7A-208

Contact us for price

Location:Hampshire, IL

orCall 712-737-8700

Description

Equipped with:

Heat exchanger

Full enclosed splash guard

3 jaw open center chuck

Air gun

Coolant gun

Chip conveyor & bucket

Pallet packing

Specifications

ManufacturerLEADWELL 2 Axis Horizontal Lathe (Linear Way)
ModelT7A-208
ConditionNew
Serial NumberL2TBA0671
Control typeFanuc Oi-TF/T3
Maximum swing19.69"
Swing over cross slide11.42"
Maximum turning diameter14.96"
Maximum turning length17.32"
Bar capacity2.56"
Maximum workpiece weight without tailstock52.91 LBS
X/Z axis travel7.48 + .79"/17.72"
Spindle speed4,000 RPM
Chuck size8"
Spindle noseA2-6
Number of tool station12 tools (SERVO)
Shank height for square tool.98"
Shank diameter for boring bar1.57"
X/Z axis rapid traverse1,181 IPM
X/Z axis motor1.8 KW
Power supply30 KVA
Machine Dimensions147" x 67" x 71"
Machine weight7,920 LBS
