Akyapak 82" x 5/16" 4 Roll Plate Roll AHS 20/06
Sold
Akyapak 82" x 5/16" 4 Roll Plate Roll AHS 20/06
$84,000 (USD)
Location:Orange City, IA
Description
Equipped with:
Cone bending device
Induction hardened rolls
DRO for side roll position
Fully welded frame

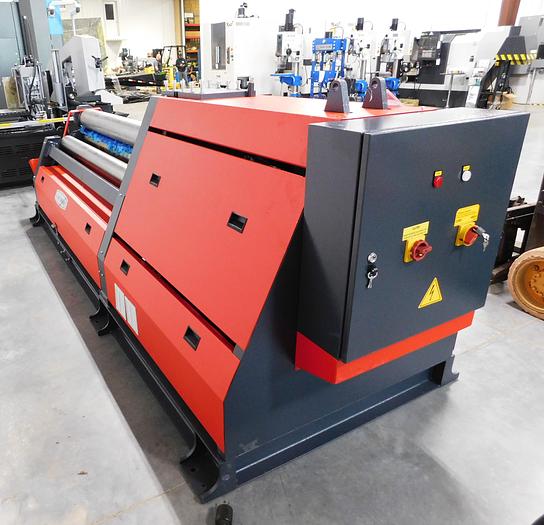

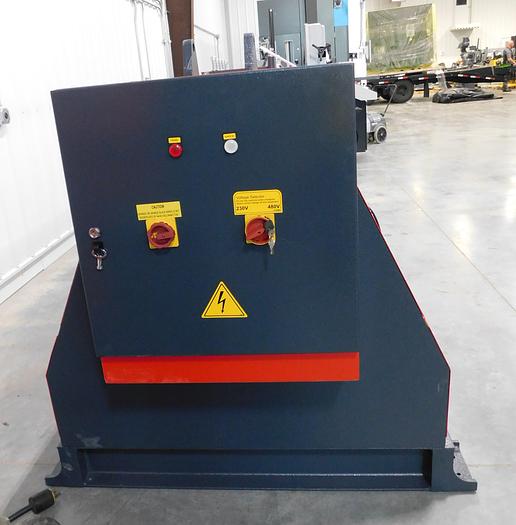

Separate control panel
Dual bending speeds
All rolls mounted on spherical roller bearings
Hydraulic prop end
Hydraulic powered rolls
Electro hydraulic calibration
Variable speed
Oil cooler
Prewired for top and side supports
Specifications
| Manufacturer | Akyapak 82" x 5/16" 4 Roll Plate Roll |
| Model | AHS 20/06 |
| Condition | New |
| Stock Number | 10842 |
| Working length | 82" |
| Maximum thickness-Pre-bending | 1/4" |
| Maximum thickness-Bending | 5/16" |
| Maximum thickness-Yield point | 34.800 PSI |
| Number of rolls | 4 |
| Main motor | 4 HP |
| Minimum diameter | 8.25" |
| Top roll diameter | 7.5" |
| Bottom roll diameter | 6.7" |
| Side roll diameter | 5.9" |
| Overall dimensions | 13' x 4' x 4' |
| Machine weight | 7,600 LBS |
