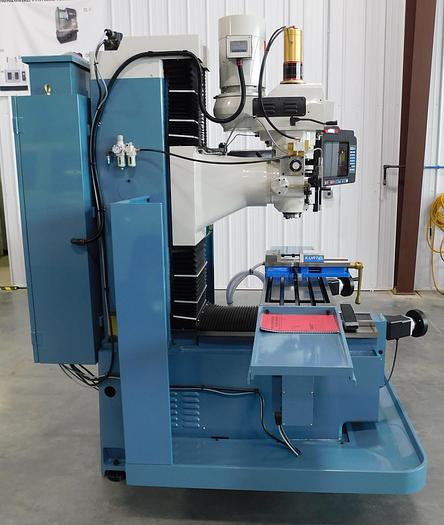

TRAK DPM RX5 CNC Bed Mill DPMRX5
TRAK DPM RX5 CNC Bed Mill DPMRX5
$63,501 (USD)
Location:Orange City, IA
orCall 712-737-8700
Description
Equipped with:
Advanced features, with verify
Chip tray & splash shield
Power drawbar – CAT40
TRAKing option
Specifications
| Manufacturer | TRAK DPM RX5 CNC Bed Mill |
| Model | DPMRX5 |
| Condition | New |
| Serial Number | 232EC843 |
| Stock Number | 10860 |

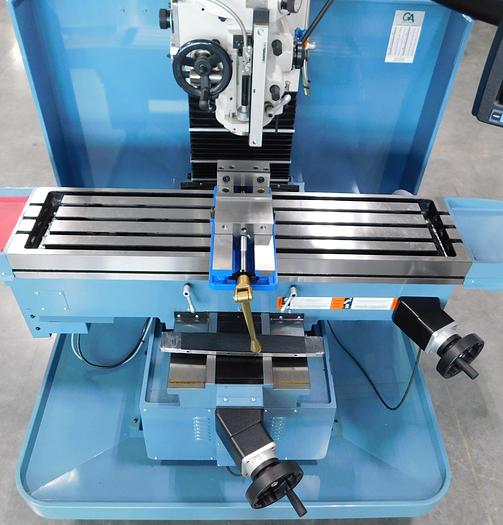

| Tabel size | 50" x 12" |
| X travel | 40" |
| Y travel | 20" |
| Z travel | 25.81" |
| Spindle taper | #40 |
| Quill diameter | 3-15/16" |
| Maximum quill travel | 5" |

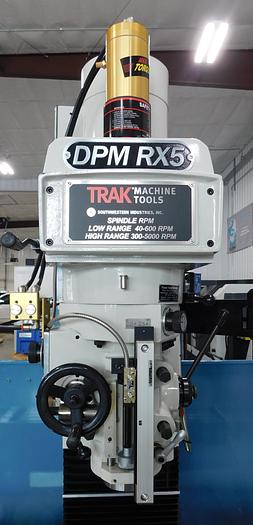

| Spindle speed range | 40-600, 300-5000 RPM |
| Spindle center to column face | 20.5" |
| Head swivel (side to side) | +/- 90 degrees |
| Quill feeds per revolution of spindle | 0.0015/0.003/0.006 |
| Spindle motor | 5 HP |
| Power requirements | 200-240V, 3 PH, 35A |
| Maximum weight of workpiece | 1,760 LBS |
| Height of table from bottom of bed | 40" |
| Maximum spindle nose to table | 25.81" |
| Minimum height | 87.5" |
| Maximum height | 102" |
| Width including table | 94.13" |
| Overall length w/electrical door closed | 82.5" |
| Overall length w/electrical door open | 103" |
| Overall width including full table traverse | 131.06" |
| Footprint | 24" x 48.4" |
| Machine weight | 4,700 LBS |
| Rapid traverse X,Y,Z | 400 IPM on X & Y, 250 IPM on Z |
| Coolant tank capacity | 10 gallons |
| Drilling maximum capacity | 1" diameter |
| Milling maximum capacity | 5 IPM |
| Tapping maximum capacity | 1-8 |
