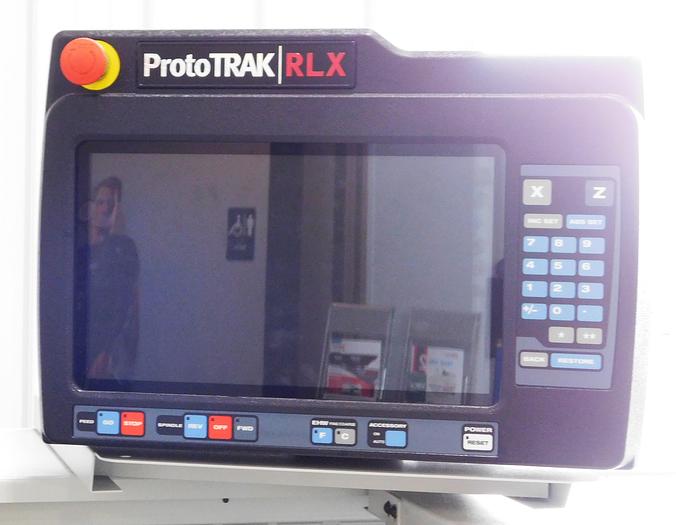

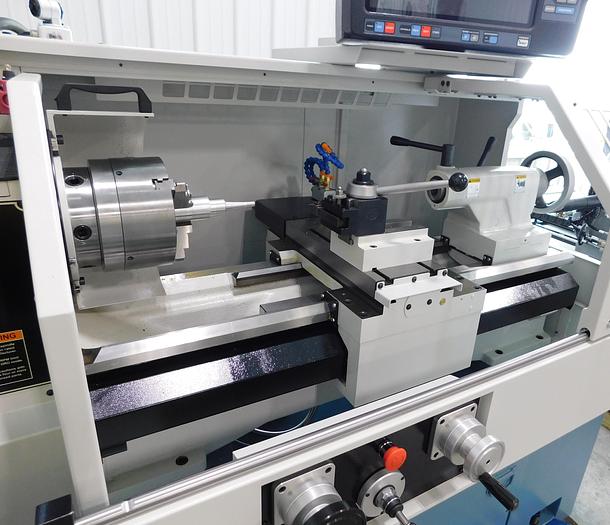

TRAK TRL 1630RX Lathe w/RLX Control 1630RX
TRAK TRL 1630RX Lathe w/RLX Control 1630RX
$51,123 (USD)
Location:Albert Lea, MN
orCall 712-737-8700
Description
Equipped with:
Advanced features w/verify
8” chuck
Coolant pump
Work light
Tailstock
TRAKing option
Tooling kit
Specifications
| Manufacturer | TRAK TRL 1630RX Lathe w/RLX Control |
| Model | 1630RX |
| Condition | New |
| Serial Number | 231EE546 |
| Stock Number | 10861 |
| Height of centers | 8" |
| Distance between centers | 30" |
| Swing over bed | 16" |
| Swing over saddle wings | 16" |
| Swing over cross slide | 8.6" |
| Cross slide travel | 8.5" |
| Tool section max | 3/4" |
| Coolant tank capacity | 8 gallons |
| Coolant pump motor | 1/8 HP |
| Bed width | 12.6" |
| Bed height | 12.6" |
| Spindle nose | D1-6 |
| Spindle through hole | 2.12" |
| Spindle taper | 6 MT |
| Spindle diameter front bearing | 3.15" |
| Number of bearings | 2 |
| Number of spindle speed ranges | 1 |
| Spindle speed range | 150-2500 RPM |
| Spindle motor | 7.5 HP |
| Voltage | 200-240V |
| Amps/Full load | 44 |
| Main motor | 220V, 3 PH, 60 Hz |
| Dimensions | 82" x 40" x 71" |
| Machine weight | 3,420 LBS |
| Tail stock quill travel | 5.75" |
| Quill diameter | 2.36" |
| Quill taper | 6 MT |
