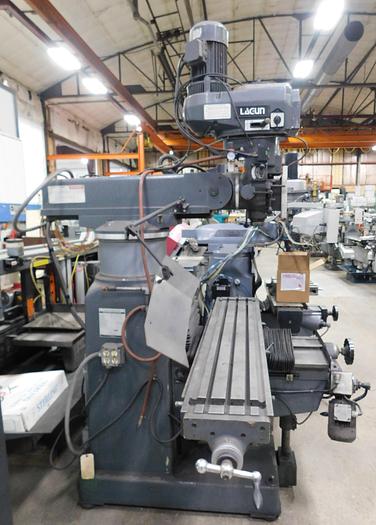

2000 Lagun 4 HP Vertical Milling Machine Deluxe 3L
2000 Lagun 4 HP Vertical Milling Machine Deluxe 3L
$12,500 (USD)
Location:Orange City, IA
orCall 712-737-8700
Description
Equipped with:

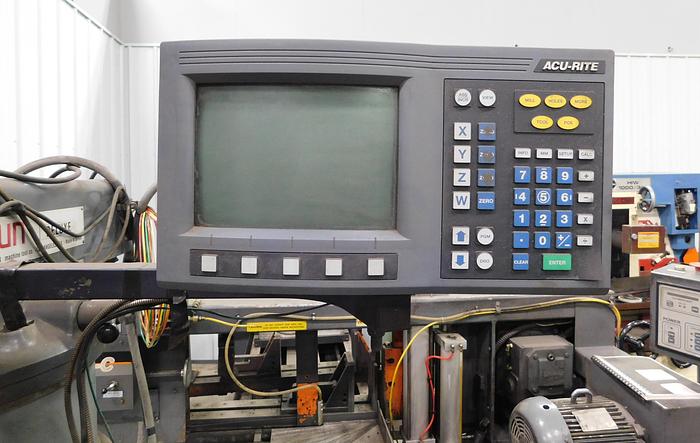

Acurite 3 axis DRO X, Y, quill

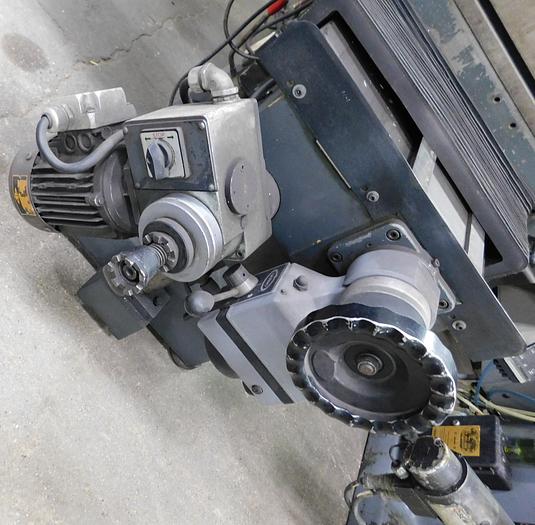

Servo feeds for X and Y
Power knee feed
6” riser
Power draw bar
#40 taper spindle
Box bed ways
Specifications
| Manufacturer | Lagun 4 HP Vertical Milling Machine |
| Model | Deluxe 3L |
| Year | 2000 |
| Condition | Used |
| Serial Number | 42866B |
| Stock Number | 10898 |

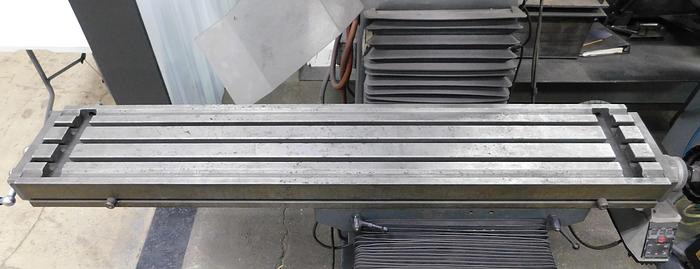

| Table size | 11" x 58" |
| Longitudinal travel | 38" |
| Cross travel | 15-1/2" |
| Knee travel | 16-7/8" |
| Ram travel | 22" |
| Spindle speeds | 55-4250 RPM |
| Spindle feeds | 0.003, 0.0015, 0.006 |
| Spindle taper | #40 |
| Quill travel | 5" |
| Main motor | 4 HP, 220/440V |
| Dimensions | 63" x 80" x 83" |
| Machine weight | 3,600 LBS |
