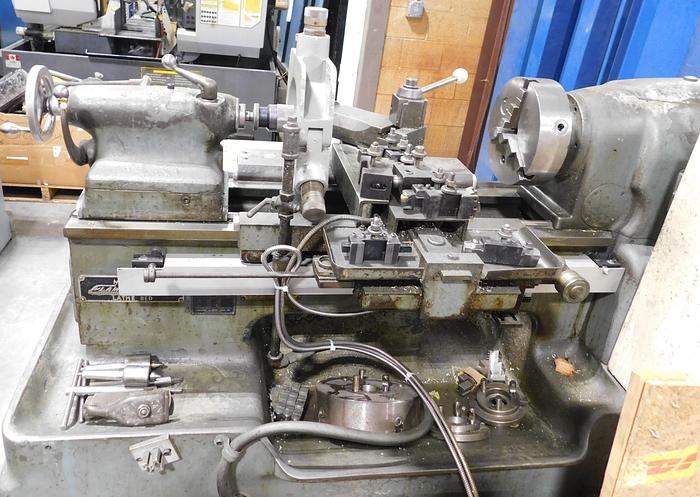

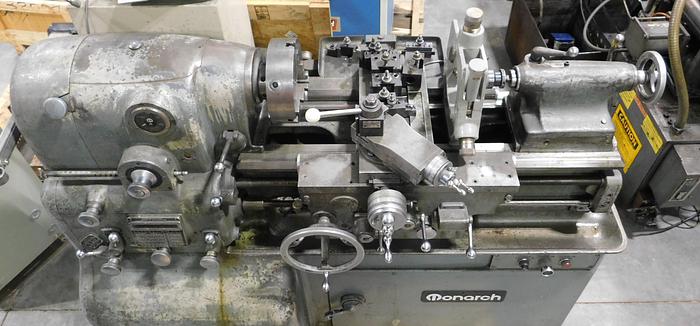

1966 Monarch 10" x 20" Super Precision Toolroom Lathe 10EE
1966 Monarch 10" x 20" Super Precision Toolroom Lathe 10EE
$9,500 (USD)
Location:Orange City, IA
orCall 712-737-8700
Description
Equipped with:
3 jaw chuck w/additional jaws
4 jaw chuck
Taper attachment
Aloris tool post w/holders

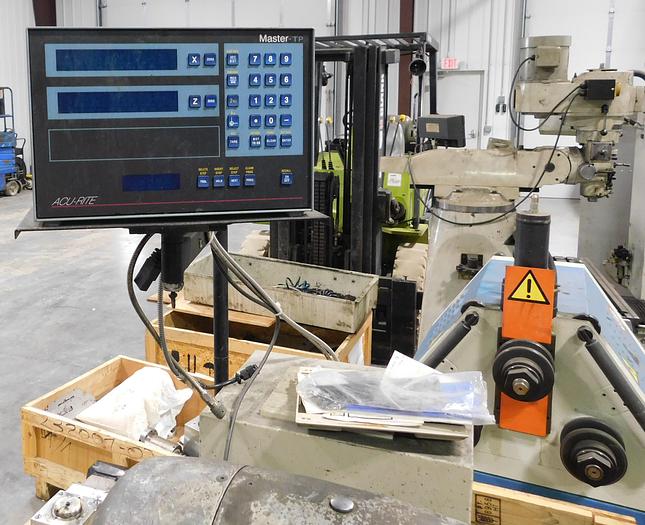

Acu-rite 2 axis DRO system
Live center
Drill chuck
Specifications
| Manufacturer | Monarch 10" x 20" Super Precision Toolroom Lathe |
| Model | 10EE |
| Year | 1966 |
| Condition | Used |
| Serial Number | EE48334 |
| Stock Number | 10912 |
| Maximum swing over bed | 12-1/2" |
| Distance between centers | 20" |
| Swing over cross slide | 7-1/4" |
| Spindle speeds | 25-4000 RPM |
| Spindle thru hole | 1-13/32" |
| Taper on tailstock | 2 MT |
| Main motor | 7-1/2", variable speed |
| Threads, inches | 3-184 TPI |
| Feeds, inches | 0.50-16.1" |
| Machine weight | 3,450 LBS |
