Equipped with:

Chip bucket

Automatic programmable mitering w/ “go to” angle functionality from 60° left to 60° right

4 full stroking, hydraulic vises (12”h shuttle, 6”h main, 6”h outboard) and 12”h squaring vise

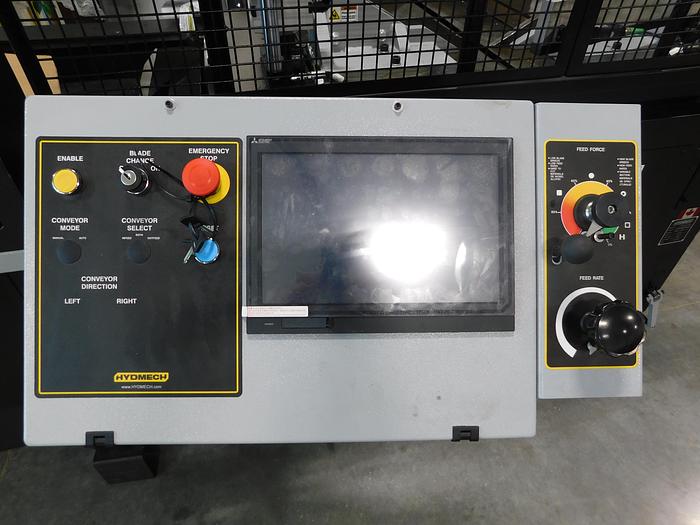

Mitsubishi FX5U 8.5” GT25 color touch screen display

Automatic multi-indexing up to 40” in a single stroke

Powered movable guide arm

Hydraulic overhead bundling

7.5 HP VFD true direct blade drive-no belts/pulleys

Hydraulic DDF system

Blade chamber separates material from cut part

Out of stock switch

Cast iron band wheels

Replaceable blade brush

Blade breakage switch

Drag chain chip conveyor

You choose left or right side infeed

Hydraulic band tensioning w/digital readout

Replaceable carbide guide inserts

2 HP hydraulic pump provides system pressure

Safety door interlocks

Flood coolant w/wash down hose

Laser light and work light

Variable vise pressure

3° head cant

Manufacturer	Hyd-Mech V-18APC-60 Automatic Vertical Mitering Bandsaw
Model	V-18APCII-60
Condition	New
Serial Number	100000000002075
Stock Number	10970
Capacity rectangular at 90 degrees	18" x 22"
Capacity round at 90 degrees	18"
Capacity rectangular at 45 degrees	18" x 14.75"
Capacity round at 45 degrees	13"
Capacity rectangular at 60 degrees	18" x 9"
Capacity round at 60 degrees	9"
Blade size	1-1/4" x 16' 11"
Blade drive	7.5 HP, VFD
Voltage	480V
Blade speeds	65-385 SFM
Coolant tank capacity	30 gallons
Hydraulic tank capacity	8 gallons
Table height	44"
Machine weight	9,000 LBS
Machine Dimensions	120" x 188" x 112"
Mitering capability	60 degrees to left and right

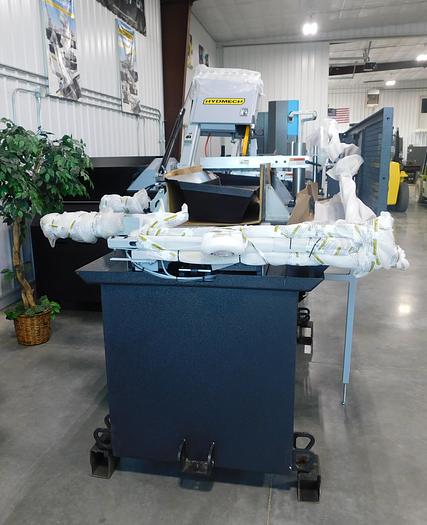

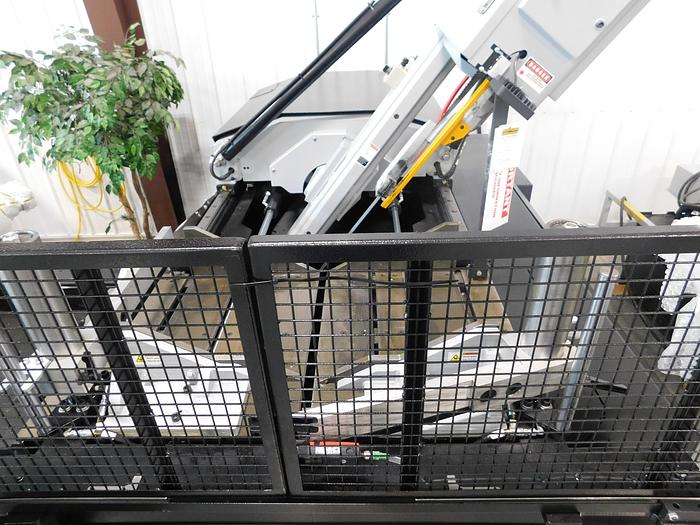

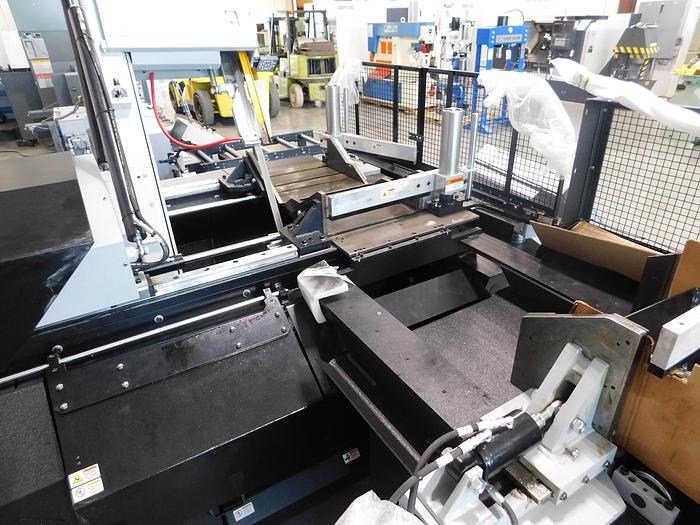

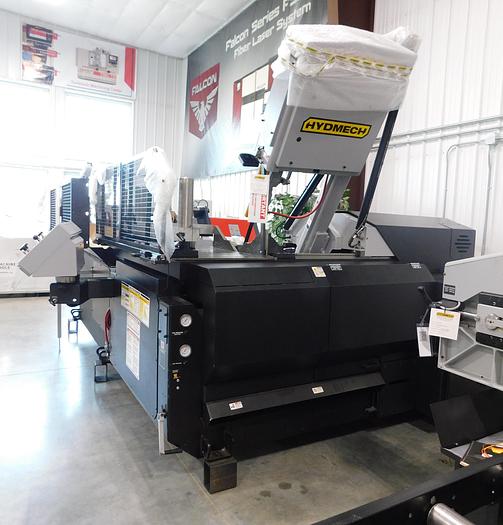

Hyd-Mech V-18APCII-60 Automatic Vertical Mitering Bandsaw
