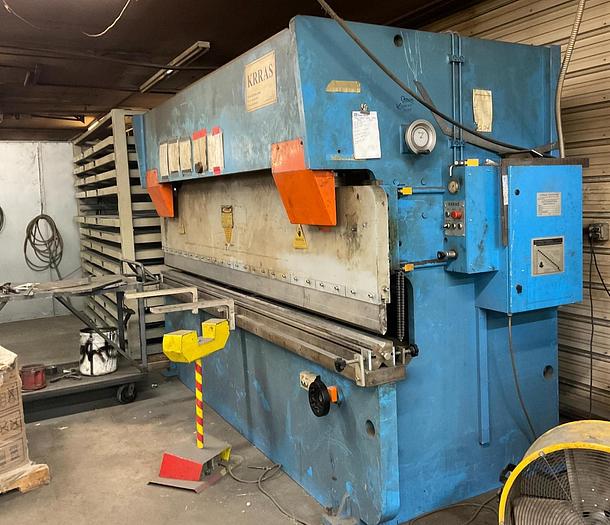

2008 Krras 12' x 175 Ton Hydraulic Press Brake Bend 160.37
2008 Krras 12' x 175 Ton Hydraulic Press Brake Bend 160.37
$31,000 (USD)
Location:Iowa
orCall 712-737-8700
Description
Equipped with:
Front operated power backgauge
4 way lower die
Straight punch & gooseneck punch
2 front arm supports
Pedestal controls w/foot switch
Specifications

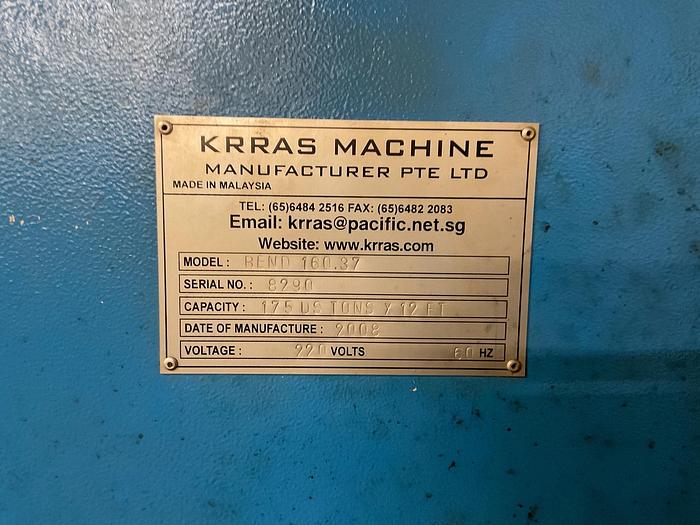

| Manufacturer | Krras 12' x 175 Ton Hydraulic Press Brake |
| Model | Bend 160.37 |
| Year | 2008 |
| Condition | Used |
| Serial Number | 8290 |
| Stock Number | 11013 |
| Machine tonnage | 175 ton |
| Machine Bending length | 145" |
| Distance between housings | 126" |
| Throat depth | 11.8" |
| Maximum stroke | 8" |
| Maximum open height | 13" |
| Approach speed | 192 IPM |
| Bend speed | 19.8 IPM |
| Return speed | 192 IPM |
| Motor | 15 HP |
| Machine dimensions | 145" x 63" x 99"H |
| Machine weight | 23,100 LBS |
