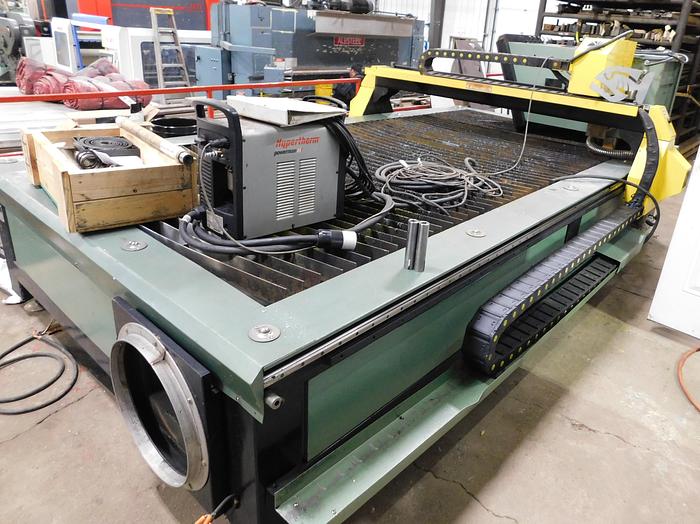

Piranha 5' x 10' C-Series Plasma Table C510
Piranha 5' x 10' C-Series Plasma Table C510
$22,500 (USD)
Location:Orange City, IA
orCall 712-737-8700
Description
Equipped with:
Hypertherm Powermax 85 power source
¾” production cut
Dual side drive
Torch height control
Downdraft exhaust system
Breakaway torch mounting

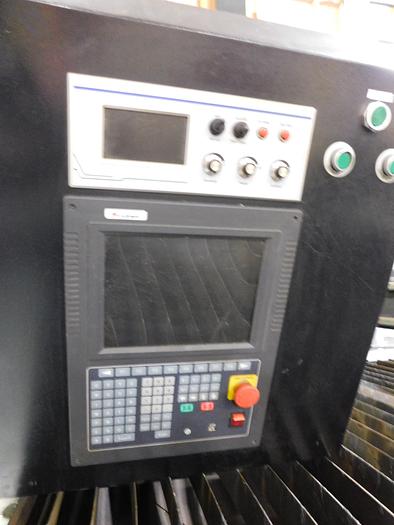

PC based control w/integrated shapes
No drawing software
Specifications
| Manufacturer | Piranha 5' x 10' C-Series Plasma Table |
| Model | C510 |
| Condition | Used |
| Serial Number | C510-001025 |
| Stock Number | 11033 |
| Cutting capacity | 5' x 10' |
| Maximum rapid speed | 314 IPM |
| Drive motors X axis | Panasonic Servo motors |
| Drive motor Y axis | Rack and pinion |
| Drive motor Z axis | Ballscrew |
| Frame construction | Welded tube |
| Torch control | Arc voltage w/initial height sensing |
| Machine Dimensions | 158"L x 102"W x 60"H |
| Machine weight | 2,500 LBS |
