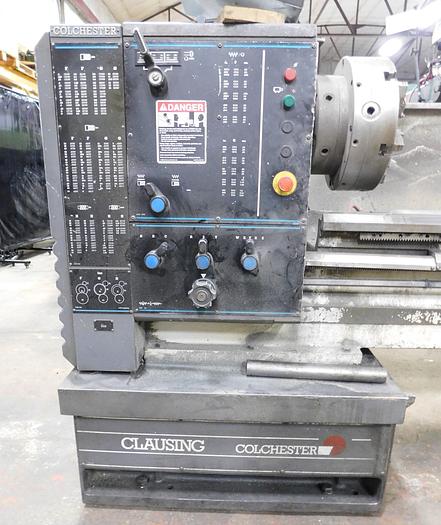

1995 Clausing Colchester 21/32" x 84" Toolroom Lathe Mastiff VS
1995 Clausing Colchester 21/32" x 84" Toolroom Lathe Mastiff VS
$8,500 (USD)
AS IS
Location:Orange City, IA
orCall 712-737-8700
Description
Equipped with:
16” 6 jaw chuck w/5.5 hole x 7.5 deep
Taper attachment
Variable speed spindle
Sony 2 axis DRO
Coolant
Chip pan
Special Note: The bed has above normal wear. Tolerances are: 7” front of bed (face of chuck) 0.00
17” = .008, 27” = .012, 37” = .008, 47” = -.0015, 57” = -.006, 67” = -.008, 77” = -.010
Specifications
| Manufacturer | Clausing Colchester 21/32" x 84" Toolroom Lathe |
| Model | Mastiff VS |
| Year | 1995 |
| Condition | Used |
| Serial Number | MS0180 |
| Stock Number | 11040 |
| Spindle speeds | 18-1800 RPM (12 steps) |
| Variable speed drive | Betweem ranges |
| Hole through spindle | 3.75" |
| Hole in chuck | 5.5" in chuck x 7.5"L |
| Feeds (inches) | 0.0016" - 0.028" (15) |
| Feeds (metric) | 0.04 mm - 0.71 mm (15) |
| Threads (inches) | 2" - 84" (72) |
| Threads (metric) | 0.2 mm - 4 mm (51) |
| Main motor | 15 HP |
| Main voltage | 415V, 3 PH |
| Transformer included | 220V, 3 PH |
| Machine weight | 5,500 LBS |
