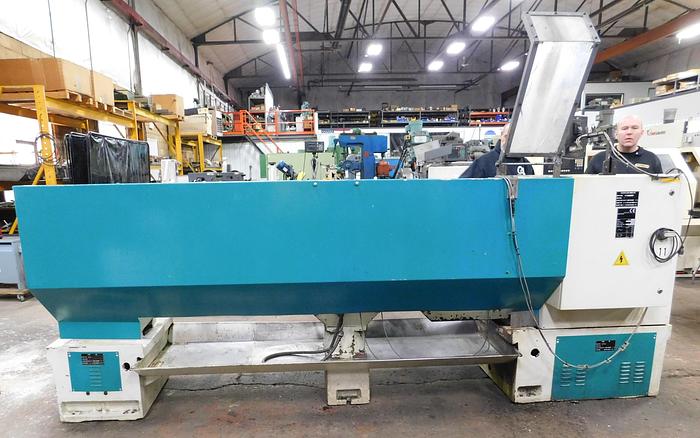

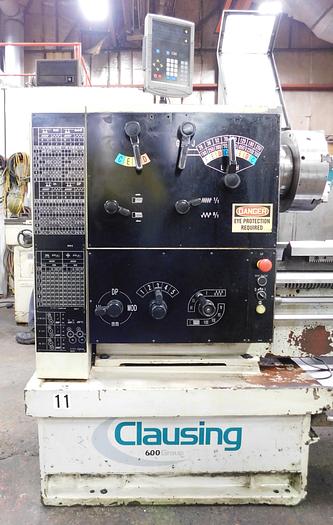

2007 Clausing 22" x 80" Toolroom Lathe CDS6256C
2007 Clausing 22" x 80" Toolroom Lathe CDS6256C
$15,500 (USD)
Location:Orange City, IA
orCall 712-737-8700
Description
Equipped with:

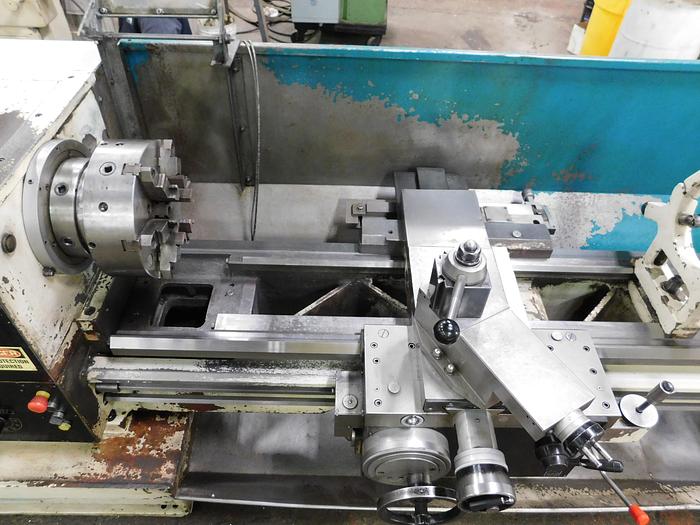

12” 4 jaw chuck

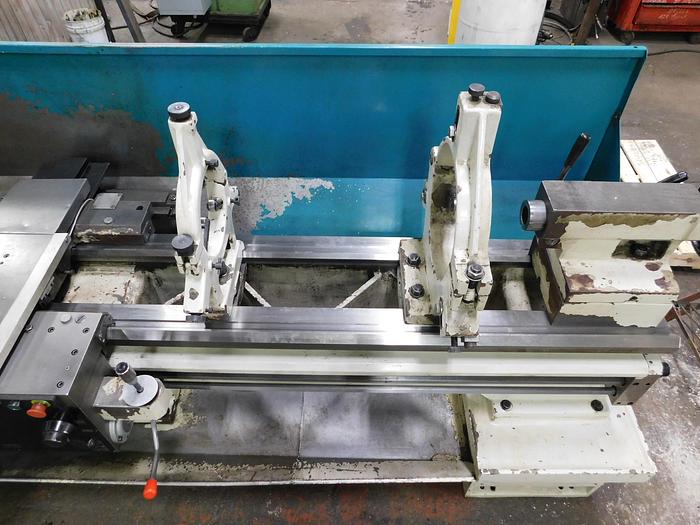

2 steady rests
Aloris quick change tool post – no holders
Newall C80 2 axis DRO
Taper attachment
Specifications
| Manufacturer | Clausing 22" x 80" Toolroom Lathe |
| Model | CDS6256C |
| Year | 2007 |
| Condition | Used |
| Serial Number | F0093 |
| Stock Number | 11041 |
| Maximum swing over bed | 22" |
| Maximum swing in gap | 31" |
| Maximum swing over cross slide | 13-3/4" |
| Distance between centers | 80" |
| Spindle bore | 4-1/8" |
| Spindle mount | D1-8 |
| Spindle speed range | 26-1700 RPM (16) |
| Feeds | 0.044-1.48 |
| Threads (Inches) | 7/16-80 TPI (42) |
| Threads (Metric) | 0.5-80 mm (37) |
| Tailstock taper | 5 MT |
| Main motor | 10 HP |
