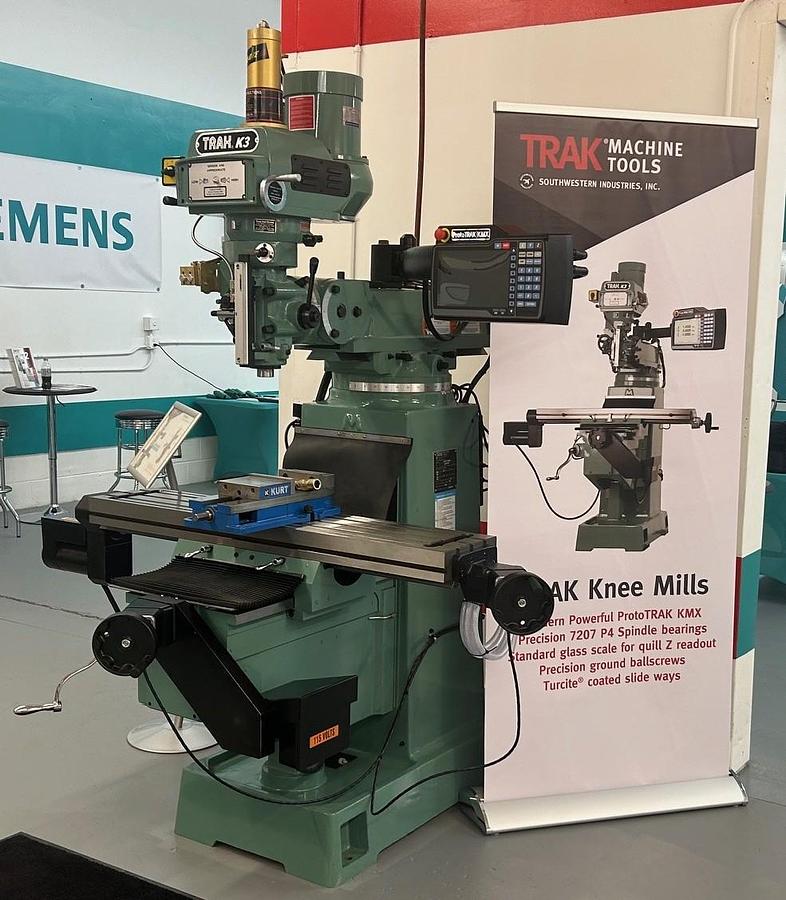

TRAK K3 2 Axis CNC Knee Mill w/KMX Control K3
TRAK K3 2 Axis CNC Knee Mill w/KMX Control K3
$33,726 (USD)
Location:Albert Lea, MN
or
Call 712-737-8700
Description
Equipped with:
Electronic handwheel
Cable breakout box
Power drawbar
Specifications
| Manufacturer | TRAK K3 2 Axis CNC Knee Mill w/KMX Control |
| Model | K3 |
| Condition | New |
| Serial Number | 251DY017 |
| Stock Number | 11074 |
| Table size | 10" x 50" |
| Table travels | 16" x 32" |
| Knee travel | 16" |
| Ram travel | 15" |
| Quill travel | 5" |
| Spindle taper | R-8 |
| Spindle speed | 6-4200 RPM |
| Head tilt L-R | 90 degrees |
| Head tilt F-B | 45 degrees |
| Main motor | 3 HP |
| Power requirements | 220/440V, 3 PH |
| Table weight | 850 LBS |
| Way surface type | Dove tail |
| Machine weight | 2,800 LBS |
| Machine dimensions | 78" x 103" x 69" |
| Control type | KMX 3 axis |
