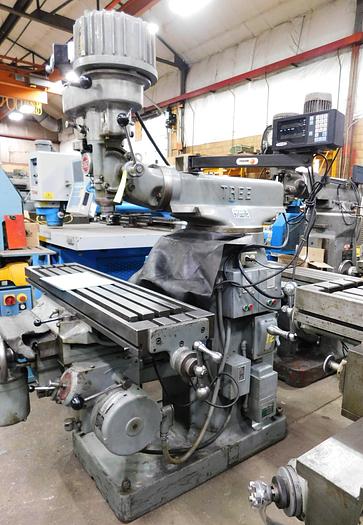

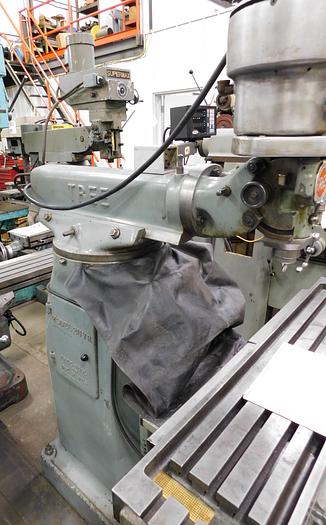

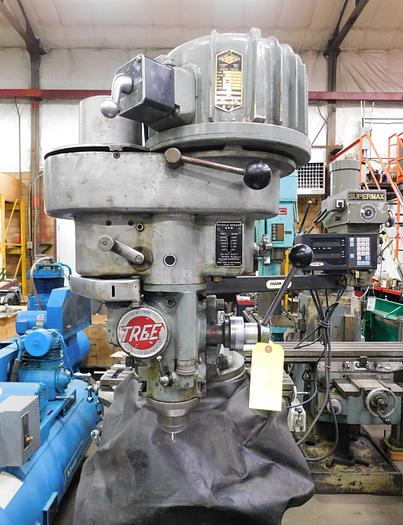

Tree vertical Milling Machine 2UVR
Tree vertical Milling Machine 2UVR
$6,000 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:

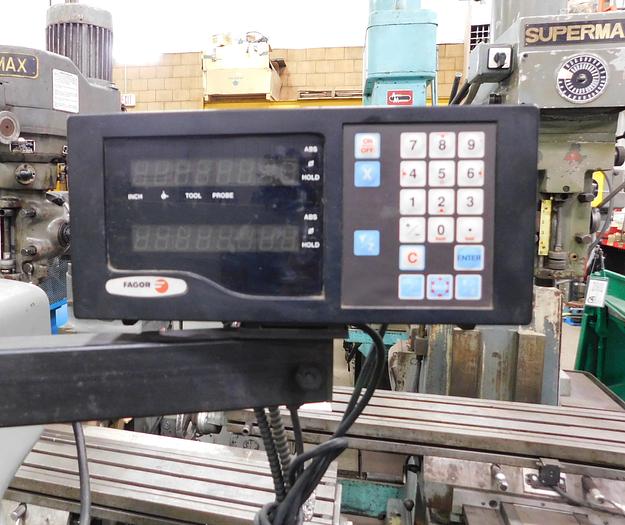

Fagor 2 axis DRO
Integrated power feed X axis
Integrated knee feed
Rapid traverse X axis
9 tree collets
Specifications
| Manufacturer | Tree vertical Milling Machine |
| Model | 2UVR |
| Condition | Used |
| Serial Number | 7581 |
| Stock Number | 11076 |
| Table size | 10-1/2" x 48" |
| Table travels | 11" x 31" |
| Knee travel | 17" |
| Quill travel | 4" |
| Spindle taper | Tree collet |
| Spindle speeds | 60-3300 CPM, Variable |
| Quill feeds | 0.0015-0.0008, Variable |
| Main motor | 1.5 HP, 220/440V, 3 PH |
| Machine dimensions | 60" x 64" x 78"T |
| Estimated weight | 3,000 LBS |
